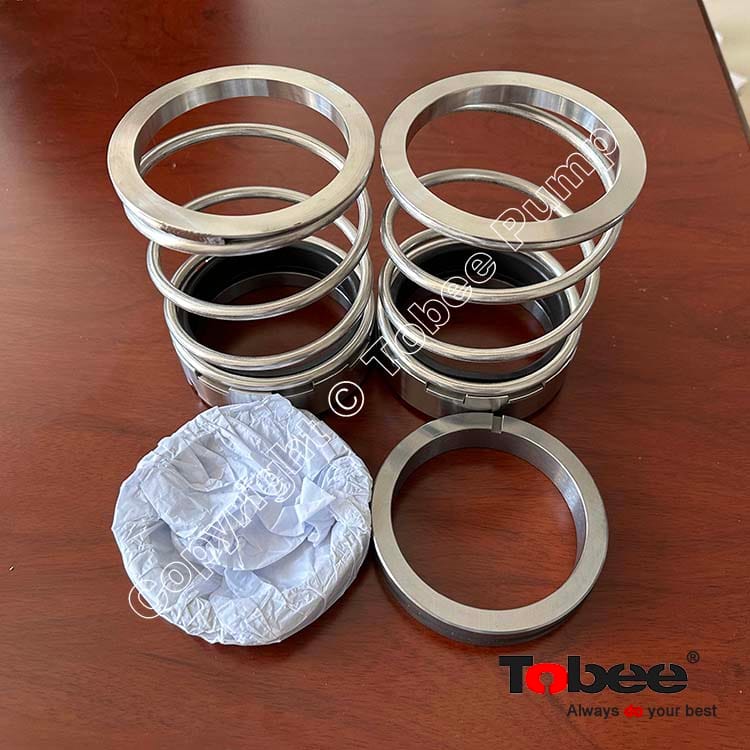

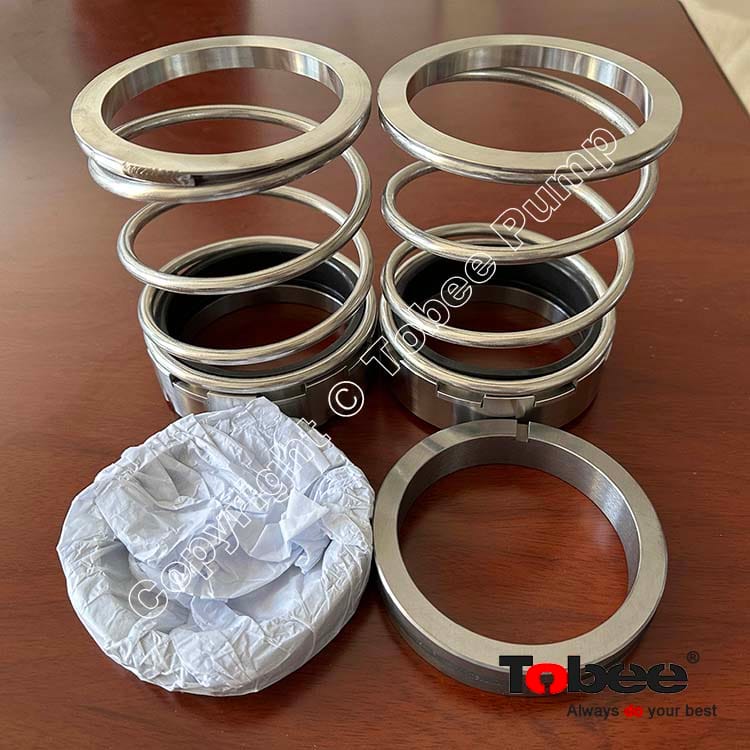

24036 Mechanical Seal used for Mission Magnum XP series centrifugal pumps from 8x6x18, 12x10x23 and 14x12x22 XP Blender Pumps.
Mission Magnum 8x6x18, 12x10x23 and 14x12x22 Frac Pumps are ideally suited for pumping high volumes of heavy slurries that are abrasive, corrosive. An excellent choice for high volume mobile and stationary applications where a small footprint is critical. The low stuffing box pressure can increase seal life approximately 50%. The extra-heavy shaft is designed for minimum deflection. The heavy duty bearings are permanently lubricated to minimize maintenance.
Design Features:
√ Full-open wide impeller.
√ Long life no adjustment mechanical seal available for near zero leakage.
√ Thick, concentric casing with replaceable casing wear pad.
√ Hard iron and high chrome alloy material optional.
√ Large power to ensure large flow rates and head pressure up to 500ft.
√ Small footprint design is versatile for mobile and stationary application.
√ Working for fracking industrial standard and blending application.
√ Each casing is approved pressure test prior to delivery.
√ Heat treatment was done to improve the hardness and wear-resistance to ensure a longer working life.
√ Shaft sleeves are made by 416SS and ceramic coating to protect shaft from abrasive fluids for extra life.
√ Mechanical seals can be Tungsten-Tungsten, Tungsten-Silicone, or Silicone-Carbide, all with highly polish sealing face and piton bellow and stainless steel springs.
√ 100% compatible with NOV™ Mission™ Magnum™ XP, MCM™ XL series and current market offerings.
√ The pumps can be unitized with Ex-proof electric motors, diesel engines in-line or over-belt driven configuration.
Mission XP Blender Pump Parts List:
|
Mission Type Magnum XP Parts List |
||||||||||
|
Item # |
Description |
Qty. |
Base Part Number |
Processing Number |
|
Item # |
Description |
Qty. |
Base Part Number |
Processing Number |
|
1 |
1 |
24022-01-30A |
651120206 |
|
25 |
Bearing, Outboard (14X12 ) |
1 |
20616-2 |
658413307 |
|
|
|
Casing, 12x10x23 |
|
25008-01-30A |
662001001 |
|
|
Bearing, Outboard (12X10 & 8X6) |
2 |
|
661009001 |
|
|
Casing, 8x6x18 |
|
25289-02-30A |
662002089 |
|
26 |
Seal, Bearing Cover |
1 |
7496-267 |
658408802 |
|
2 |
Nut, Casing |
32 |
3932-61 |
648402014 |
|
27 |
Lock Washer |
1 |
Jun-24 |
658407002 |
|
3 |
Stud, Casing (14X12 & 12X10) |
32 |
3862-86 |
658403308 |
|
28 |
Lock Nut, Bearing |
1 |
Jun-23 |
658406509 |
|
|
Stud, Casing (8X6) |
16 |
3862-90 |
601208285 |
|
29 |
Oil Seal, Bearing Cover |
2 |
20619-04 |
658413638 |
|
|
Stud, Casing (8X6) |
16 |
3862-92 |
648401118 |
|
30 |
Drive Screws |
6 |
12530 |
601482417 |
|
4 |
Gasket, Casing (14x12x22) |
2 |
10399-55-01 |
658410501 |
|
31 |
Nameplate |
1 |
23017 |
601501505 |
|
|
Gasket, Casing (12x10x23) |
|
25012-01-01 |
661010001 |
|
32 |
Shaft |
1 |
24028-33 |
656420007 |
|
|
Gasket, Casing (8x6x18) |
|
25012-02-05 |
662010032 |
|
33 |
Key, Coupling |
1 |
4372-30-21 |
658405055 |
|
5 |
Cover, Front (14x12x22) |
1 |
24021-01-30 |
654310309 |
|
34 |
Cover, Bearing O.B. |
1 |
24033-01-01 |
654314004 |
|
|
Cover, Front (12x10x23) |
|
25009-01-30 |
662014003 |
|
35 |
Bolts, Bearing Cover |
2 |
3861-139 |
648401081 |
|
|
Cover, Front (8x6x18) |
|
25291-02-30 |
662014129 |
|
36 |
Washer, Bearing Cover |
2 |
3936-19-L8 |
648402030 |
|
6 |
Impeller, 14x12 Clockwise Rot. 22” |
1 |
24024-X0-HS |
662005003 |
|
37 |
Nuts, Bearing Housing |
2 |
3932-62 |
658404702 |
|
|
Impeller, 12x10 Clockwise Rot. 23” |
|
25010-Y0-30 |
662005002 |
|
38 |
Bolt, Bearing Housing |
4 |
3861-138 |
648401057 |
|
|
Impeller, 8x6 Clockwise Rot. 18” |
|
25292-T0-30 |
662005018 |
|
39 |
Washer, Flat |
2 |
3936-19-L8 |
648402030 |
|
7 |
Seal, Impeller Nose |
1 |
7496-158 |
658408109 |
|
40 |
Bolt, Packing Gland |
2 |
3861-165 |
601408289 |
|
8 |
Key, Impeller |
1 |
4372-29-21 |
658405006 |
|
41 |
Gland, Packing Half |
2 |
24034-01-13 |
654315100 |
|
9 |
Nose, Impeller ( Hex Design) |
1 |
24025-04-25L |
652309601 |
|
42 |
Packing Set |
1 |
8264-344-K |
658409503 |
|
|
Nose, Impeller (Two Flat Design) |
|
24025-01-25L |
652309600 |
|
43 |
Screw, Cap |
2 |
3909-04-87 |
658404207 |
|
|
Nose, Impeller (2 Flat Ion Nitride) |
|
24025-03-25L |
662014054 |
|
44 |
Plug, Grease |
1 |
Jan-05 |
601474695 |
|
10 |
Screw, Set |
1 |
14430-19 |
658411400 |
|
45 |
Breather |
1 |
Jan-67 |
601473689 |
|
11 |
Jam Nut |
1 |
24026-25L |
658414255 |
|
46 |
Plug, Fitting |
1 |
19368 |
661010020 |
|
12 |
Seal, Impeller |
1 |
7496-153 |
658408059 |
|
58 |
Plug, Pipe |
2 |
2002/1/5 |
658409859 |
|
13 |
Mechanical Seal (Crane Type) |
1 |
24036 |
658416102 |
|
59 |
Plug, Pipe |
1 |
2006/1/5 |
658410006 |
|
14 |
Stuffing Box, Mech. Seal (14X12) |
1 |
24027-01-30 |
653322305 |
|
60 |
Tag, Mechanical Seal |
1 |
22566 |
603445727 |
|
|
Stuffing Box, Mech. Seal (12X10) |
|
24027-02-30 |
662014002 |
|
Packed Split-Box and Wearplate |
||||
|
|
Stuffing Box, Mech. Seal (8X6) |
|
25290-02-30 |
662014128 |
|
47 |
Wearplate, Split Box |
1 |
24023-01-XX |
654310507 |
|
15 |
Bolt, Stuffing Box |
2 |
3861-117 |
648401016 |
|
48 |
Packing Set |
1 |
8264-345-K |
658409552 |
|
16 |
Sleeve, Shaft |
1 |
24029-21BZ |
656422201 |
|
49 |
Nut and Washer Assembly |
2 |
22216-02 |
658413935 |
|
17 |
Seal, Sleeve |
1 |
7496-234 |
658408505 |
|
50 |
Bolt, Split-Box |
2 |
3861-168 |
1/2-13x4 lg Gr 5 |
|
18 |
Slinger |
1 |
24030-01-13 |
654311604 |
|
51 |
Stuffing Box, Split |
2 |
24037-01-87 |
654317007 |
|
19 |
Seal, Slinger |
1 |
7496-238P |
658408554 |
|
52 |
Latern Ring Half |
2 |
24039-13 |
658418207 |
|
21 |
Oil Seal, Inboard Bearing |
2 |
20619-03 |
658413604 |
|
53 |
Fitting, Grease |
1 |
19368-01 |
601499403 |
|
21 |
Bearing, Inboard |
1 |
20615-2 |
658413000 |
|
54 |
Screw, Cap |
2 |
3909-13-87 |
658404405 |
|
22 |
Frame 14X12 |
1 |
24031-01-01 |
654312008 |
|
Auxiliary Tools |
||||
|
|
Frame 12X10 |
|
24031-02-01 |
662014001 |
|
55 |
Tool, Impeller Nose & Nut |
1 |
24040 |
658420203 |
|
|
Frame 8X6 |
|
25293-02-01 |
662014130 |
|
|
Tool, Impeller Nose (HEX) |
|
Standard Hex Socket |
|
|
23 |
Housing, Bearing |
1 |
24032-01-01 |
654313006 |
|
56 |
Tool, Impeller Removal |
1 |
24041 |
658420252 |
|
24 |
Seal, Bearing Housing |
1 |
7496-272 |
658408901 |
|
57 |
Tool, Shaft Holder |
1 |
24042 |
658420302 |
