200SV-SP vertical spindle sump slurry pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.
Tobee® manufacturers 40PV SP(R),65QV SP(R),100RV SP(R),150SV SP(R),200SV SP(R),250TV SP(R), 300TV SP(R) vertical cantilever sump pumps and 100% interchangeable wearing spare parts, SP vertical sump slurry pumps - hard metal construction, SPR vertical sump slurry pumps - rubber covered construction.
SP/SPR heavy duty cantilever sump pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.

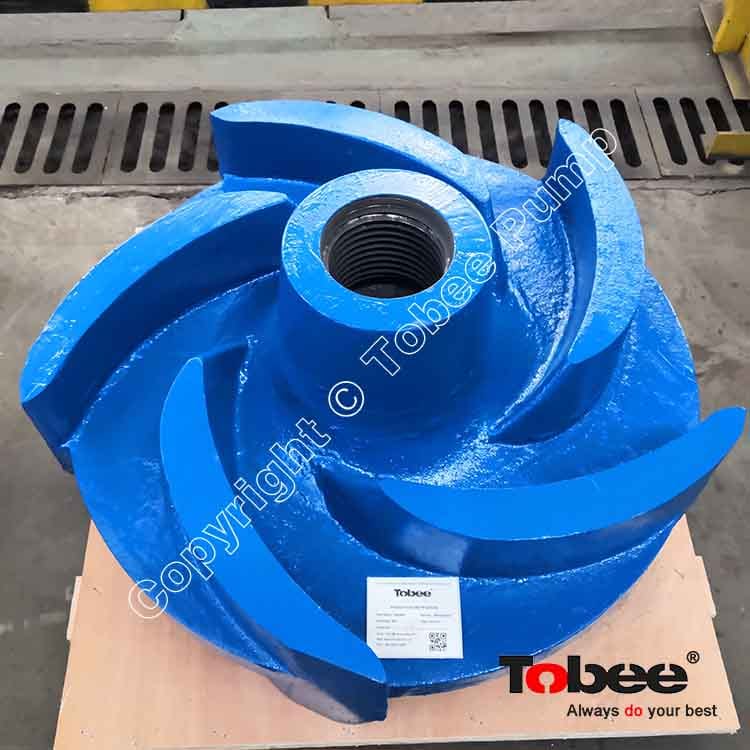

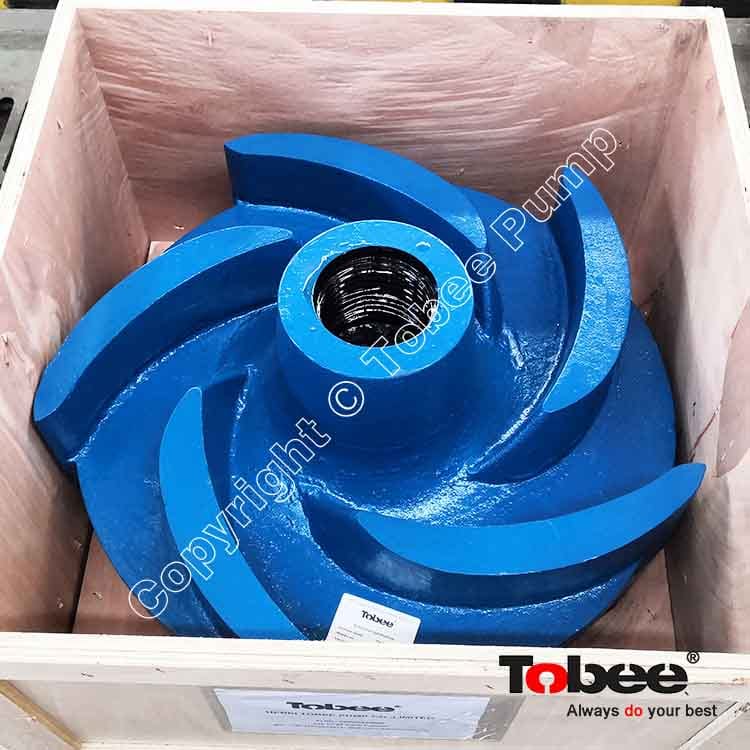

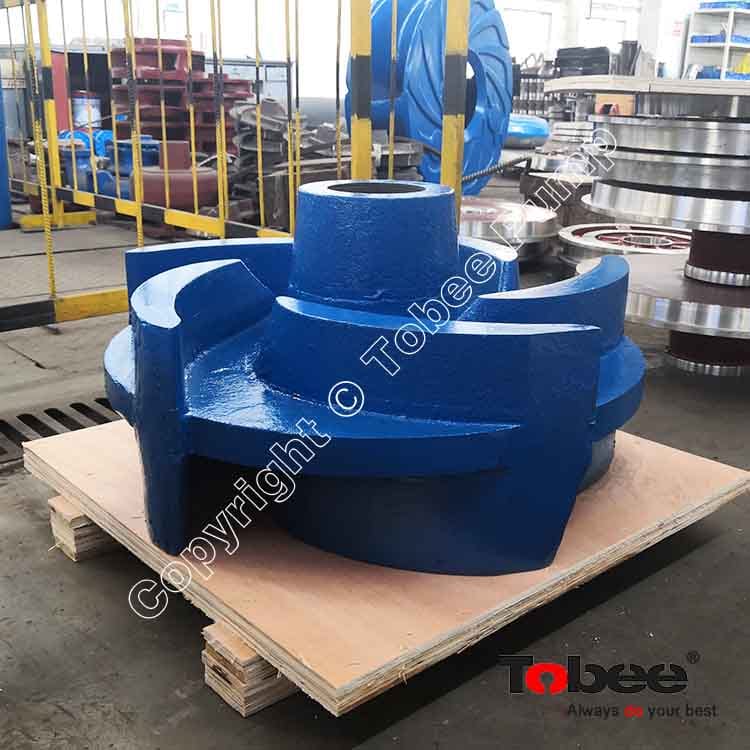

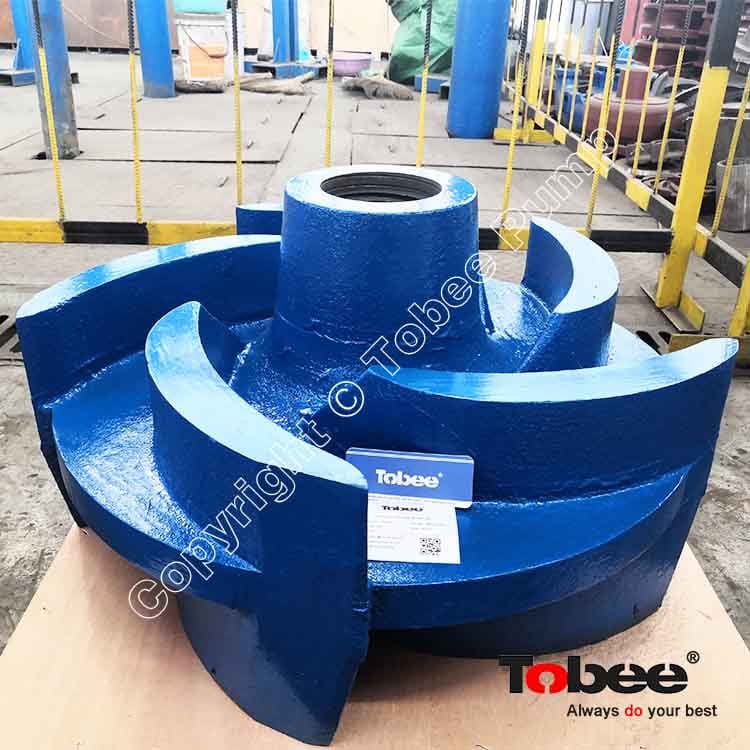

Vertical Slurry Pump Spares:
• Bearing Assembly - The bearings, shaft and housing are generously proportioned to avoid problems associated with the operation of cantilevered shafts in the first critical speed zones. The assembly is grease lubricated and sealed by labyrinths; the upper is grease purged and the lower protected by a special flinger. The upper or drive end bearing is a parallel roller type whilst the lower bearing is a double taper roller with preset end float. This high performance bearing arrangement and robust shaft eliminates the need for a lower submerged bearing.
• Column Assembly - Completely fabricated from mild steel. The SPR model is elastomer covered.
• Discharge Pipe - Metal for SP, elastomer covered for SPR. All wetted metal parts are completely rust protected.
• Submerged Bearings - None
• Agitation - An external agitator spray connection arrangement can be fitted to the pump as an option. Alternatively, a mechanical agitator is fitted to an extended shaft protruding from the impeller eye.
• Materials - Pumps can be manufactured in abrasive and corrosive resistant materials.
