Impeller SP20206A05 as one of the important wet parts for 200SV-SP Vertical Spindle Slurry Pumps.

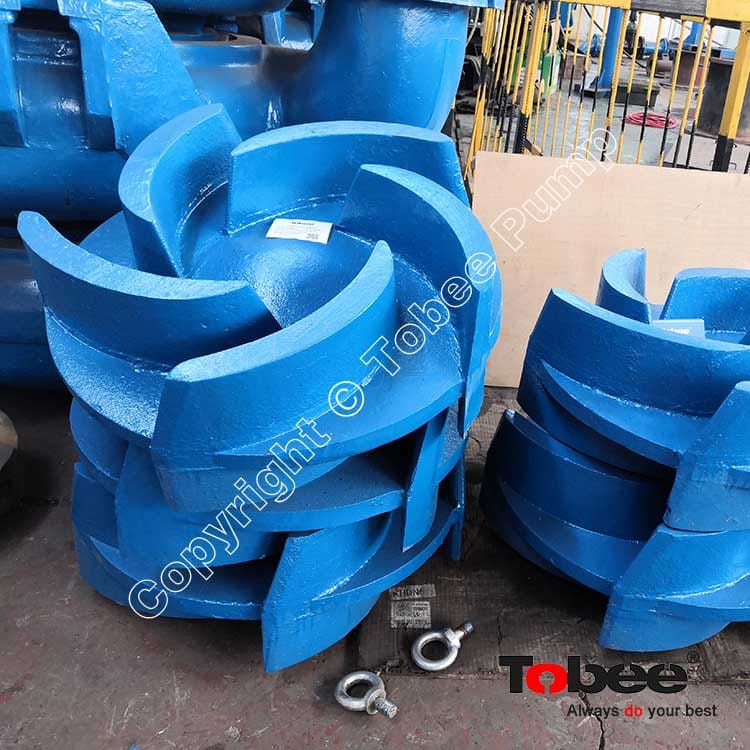

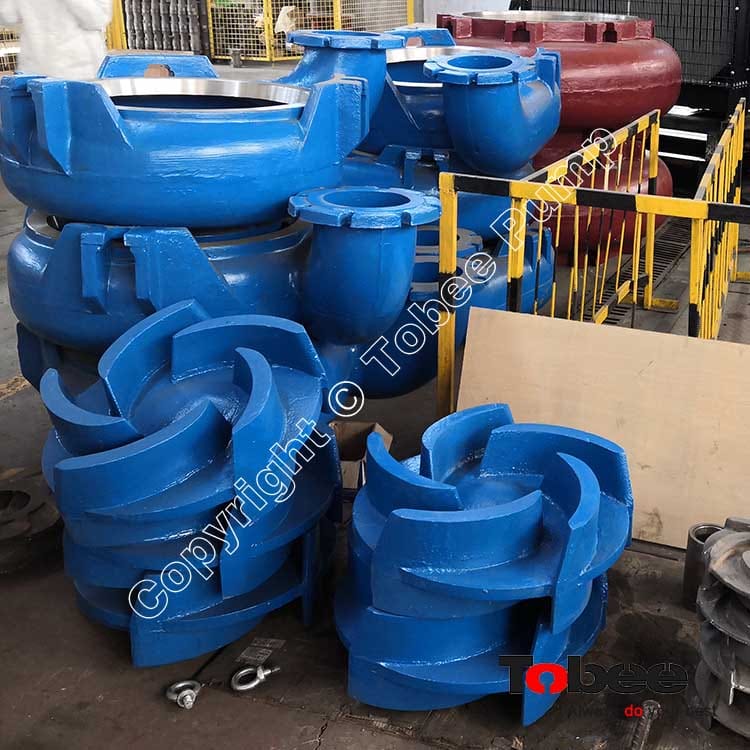

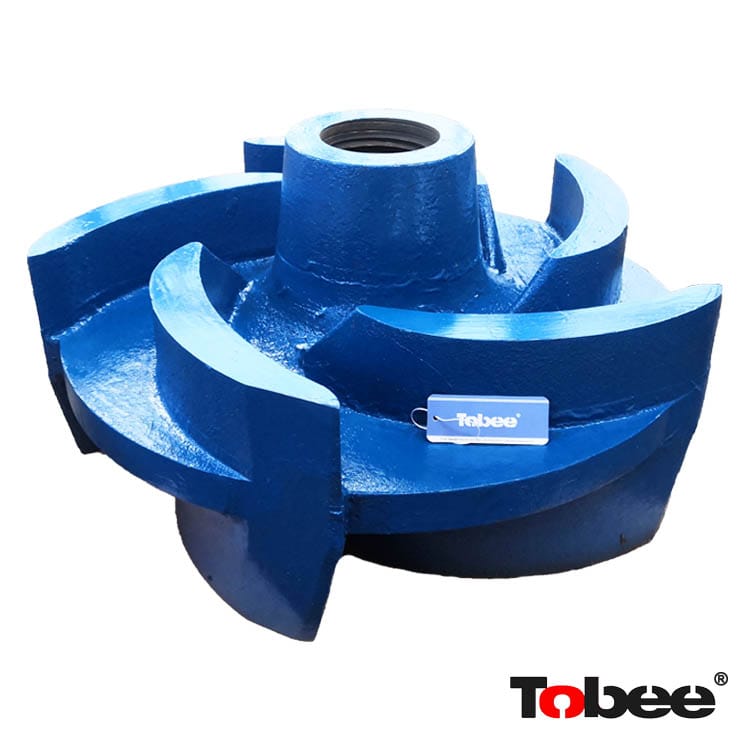

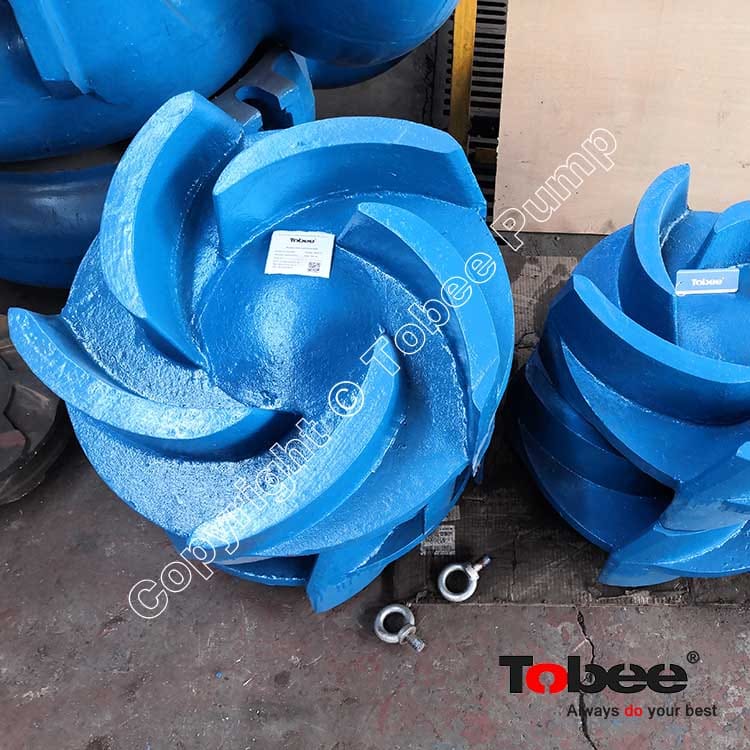

200SV-SP Vertical Slurry Pump Impeller SP20206A05 - Double suction impellers (top and bottom entry) induce low axial bearing loads and have heavy deep vanes for maximum wear resistance and for handling large solids. Wear resistant alloys, polyurethane and moulded elastomer impellers are interchangeable. The slurry pump impeller is adjusted axially within the casting during assembly by external shims under the bearing housing feet. No further adjustment is necessary.
Tobee® Vertical Spindle Slurry Pumps Performance Parameters:
|
Model |
Matching power P (kw) |
Capacity Q (m3/h) |
Head H (m) |
Speed n (r/min) |
Eff.η (%) |
Impeller dia. (mm) |
Max.particles (mm) |
Weight (kg) |
|
1.1-15 |
7.2-29 |
4-28.5 |
1000-2200 |
40 |
188 |
12 |
300 |
|
|
65QV-SP(R) |
3-30 |
18-113 |
5-31.5 |
700-1500 |
60 |
280 |
15 |
500 |
|
5.5-75 |
40-289 |
5-36 |
500-1200 |
62 |
370 |
32 |
920 |
|
|
150SV-SP(R) |
11-110 |
108-576 |
8.5-40 |
500-1000 |
52 |
450 |
45 |
1737 |
|
200SV-SP(R) |
15-110 |
180-890 |
6.5-37 |
400-850 |
64 |
520 |
65 |
2800 |
|
250TV-SP(R) |
18.5-200 |
261-1089 |
7-33.5 |
400-750 |
60 |
575 |
65 |
3700 |
|
300TV-SP(R) |
22--200 |
288-1267 |
6-33 |
350-700 |
50 |
610 |
65 |
3940 |
Tobee® Vertical Spindle Slurry Pumps Applications:
The vertical slurry pumps are available in a wide range of popular sizes to suit most pumping applications. The vertical sump pumps are proving their reliability and efficiency worldwide in: minerals processing, coal preparation, chemical processing, effluent handling, sand and gravel and almost every other tank, pit or hole-in-the ground slurry handling situation. The vertical pump design with either hard metal (SP) or elastomer covered (SPR) components makes it ideal for abrasive and/or corrosive slurries, large particle sizes, high density slurries, continuous or “snore” operation, heavy duties demanding cantilever shafts.
