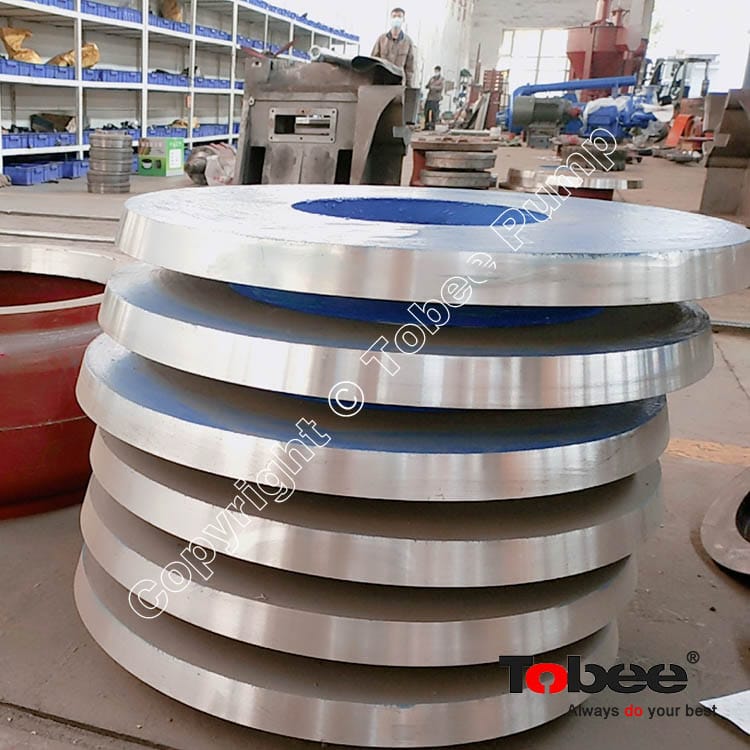

200SV-SP Vertical Slurry Pump Frame Plate Liner Insert SP20041A05

200SV-SP Spindle Pump F.P.L Insert SP20041A05, 200SV-SP Column Pump wetted parts impeller SP20206A05, 200SV-SP Spindle Pump casing SP20092A05.

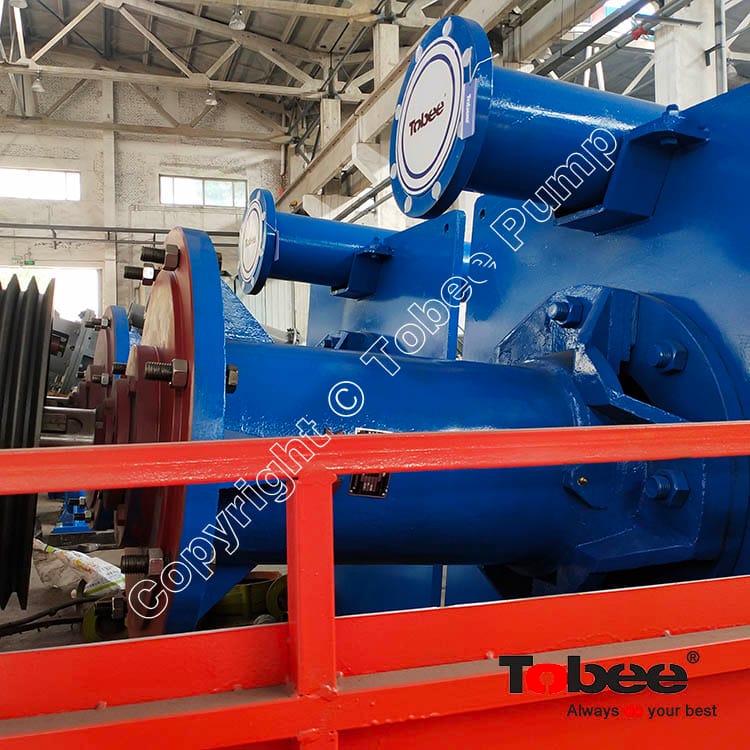

200SV-SP Vertical Slurry Pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.

Design Features:

Less wear, less corrosion
Wetted components are available in a wide range of alloys and elastomers. Tobee selects the optimum combination of materials for maximum resistance to wear in virtually any industrial application, including those demanding both abrasion and corrosion resistance, and where larger particles or high density slurries are encountered.
• Abrasion resistant Ultrachrome® A05 alloy.
• Abrasion/corrosion-resistant Hyperchrome® A49 alloy.
• Corrosion-resistant stainless steels.
• Natural and synthetic elastomers.
No submerged bearing failures
The robust cantilever shaft avoids the need for lower submerged bearings which are often the source of premature bearing failure.
• Heavy duty roller bearings, above mounting plate.
• No submerged bearings.
• Labyrinth/flinger bearing protection.
• Rigid, large diameter shaft.
No shaft sealing problems
The vertical cantilever design requires no shaft seal.
No priming required.
The top and bottom inlet design is ideally suited for “snore” conditions.
Less risk of blocking
The screened inlets and large impeller passages reduce the risk of blockages.
Zero ancillary water costs
The vertical cantilever design with no gland or submerged bearings avoids the need for expensive gland or bearing flushing water.

Tobee® 200 SV SP Vertical Slurry Pumps Applications:

• Mining
• Sump drainage
• Coal prep
• Mineral processing
• Mill sumps
• Tunnel
• Tailings
• Chemical slurries
• Ash handing
• Paper and Pulp
• Waste sludge
• Coarse sand
• Lime mud
• Phosphoric acid
• Sump Dredging
• Mill grinding
• Alumina Industry
• Power Plant
• Potash Fertilizer Plant
• Other industries
