200SV-SP Vertical Pumps and spares

(163 Reviews)

TB-SP20092A05

Product Brands: Tobee

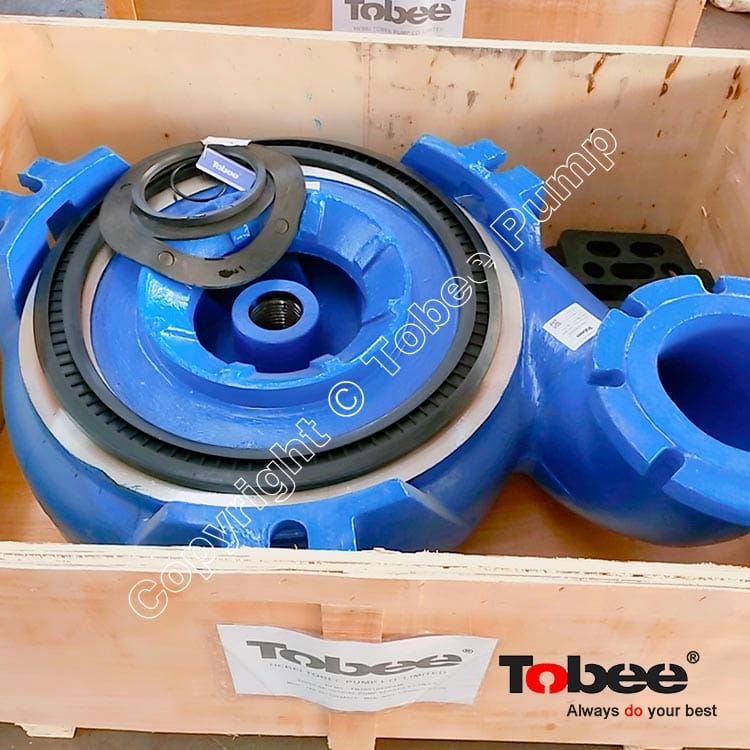

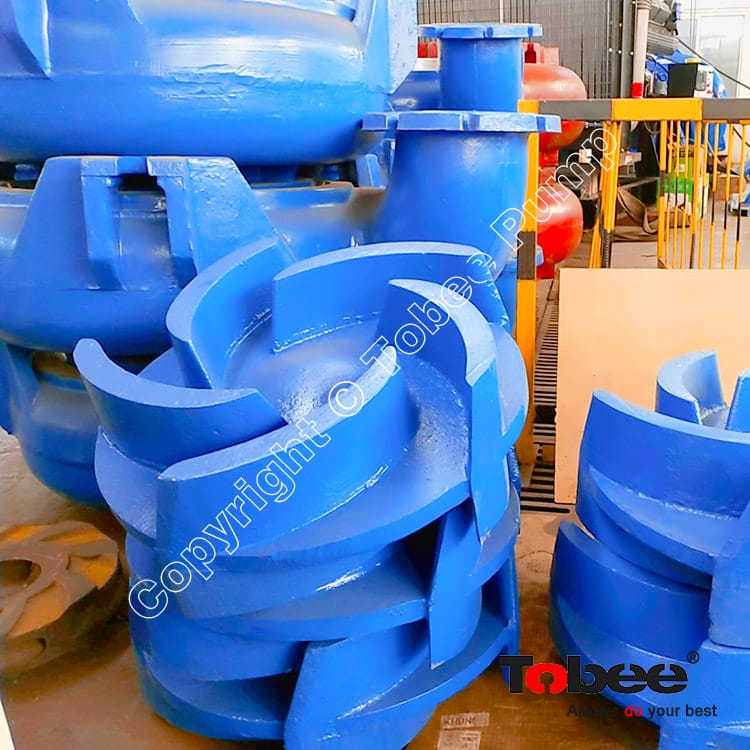

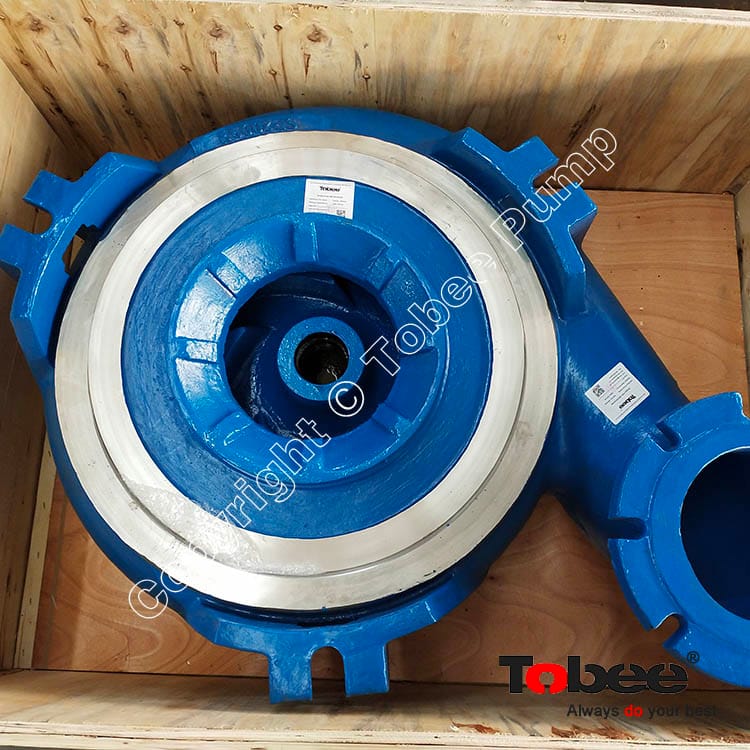

200SV-SP Vertical Pumps and spare parts: Pump casing SP20092A05, Pump impeller SP20206A05, Pump F.P.L. Insert SP20041A05, Seal parts: SP15116-1, SV025, SP20204, F8124, etc.

price:

$5980.00

Pump Type:

Vertical Pump

Pump Models:

200SV-SP

Certificates:

ISO CE SGS

Quantity:

- + (109 available)
Add to Favorite Items (486)

Sales: 362+

Tobee® 200SV-SP Vertical Pumps and spare parts: Pump casing SP20092A05, Pump impeller SP20206A05, Pump F.P.L. Insert SP20041A05, Seal parts: SP15116-1, SV025, SP20204, F8124, etc.

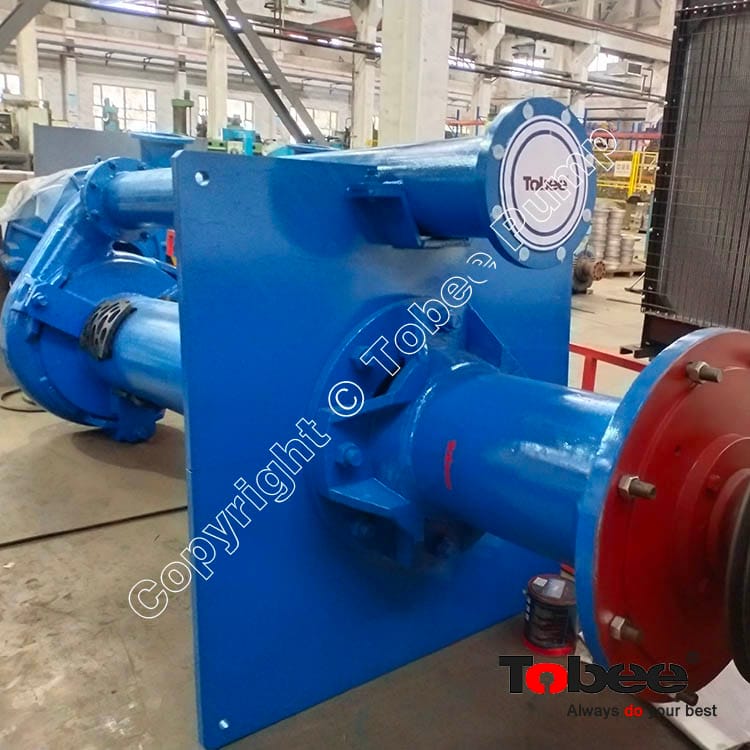

Tobee® 200SV-SP Vertical Slurry Pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Optional recessed impeller and suction agitator available.

Tobee® Vertical Slurry Pump Performance Parameters:

Model

Matching power P

(kw)

Capacity Q

(m3/h)

Head H

(m)

Speed n

(r/min)

Eff.η

(%)

Impeller dia.

(mm)

Max.particles

(mm)

Weight

(kg)

40PV-SP(R)

1.1-15

7.2-29

4-28.5

1000-2200

40

188

12

300

65QV-SP(R)

3-30

18-113

5-31.5

700-1500

60

280

15

500

100RV-SP(R)

5.5-75

40-289

5-36

500-1200

62

370

32

920

150SV-SP(R)

11-110

108-576

8.5-40

500-1000

52

450

45

1737

200SV-SP(R)

15-110

180-890

6.5-37

400-850

64

520

65

2800

250TV-SP(R)

18.5-200

261-1089

7-33.5

400-750

60

575

65

3700

300TV-SP(R)

22--200

288-1267

6-33

350-700

50

610

65

3940
