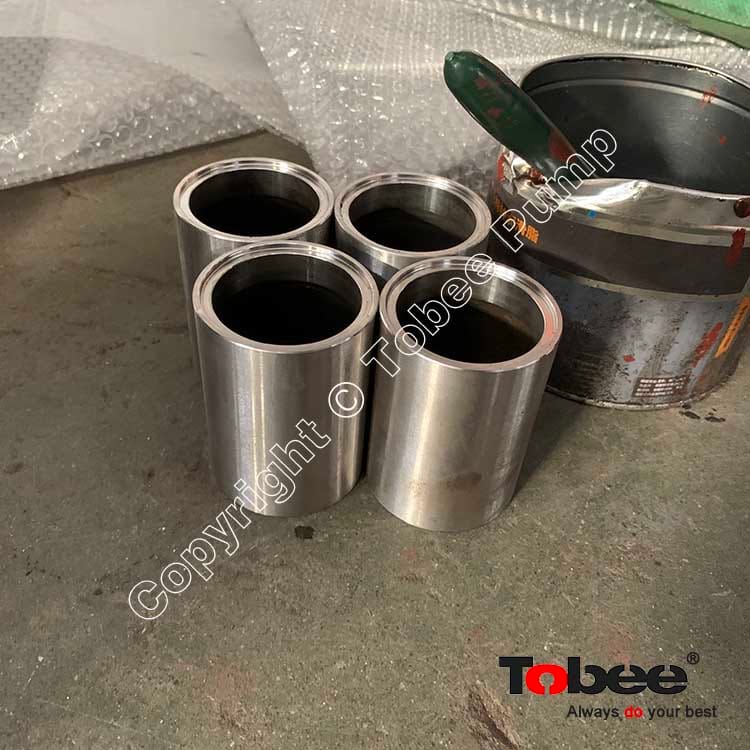

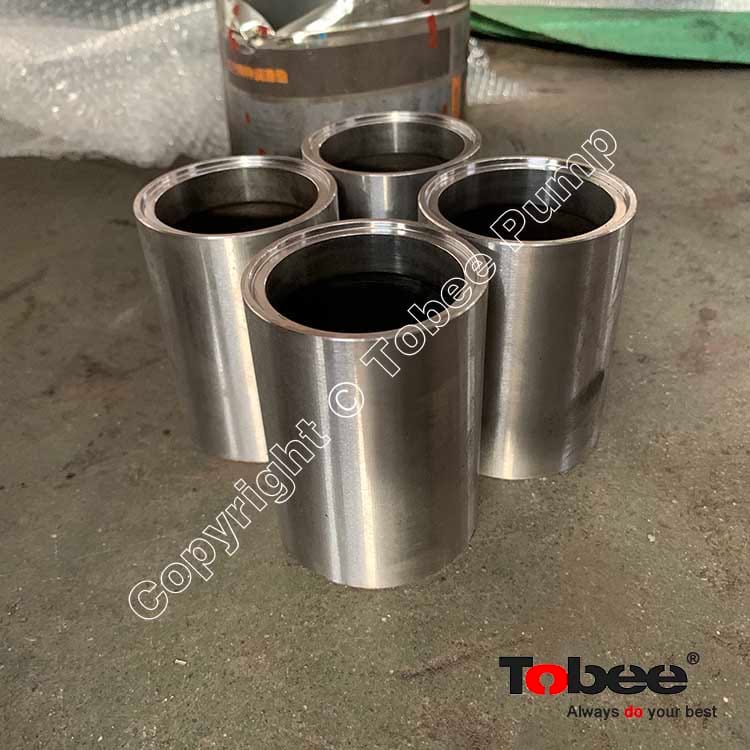

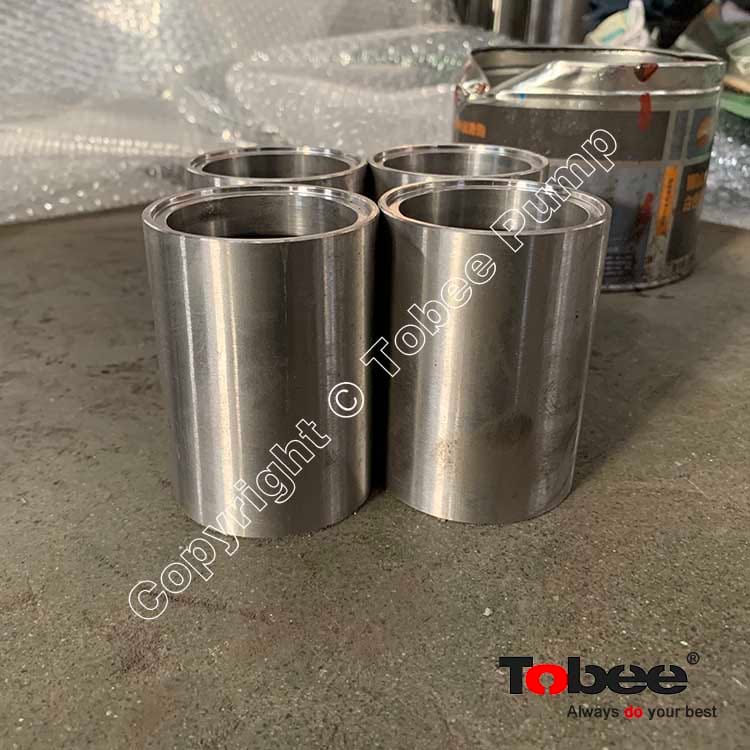

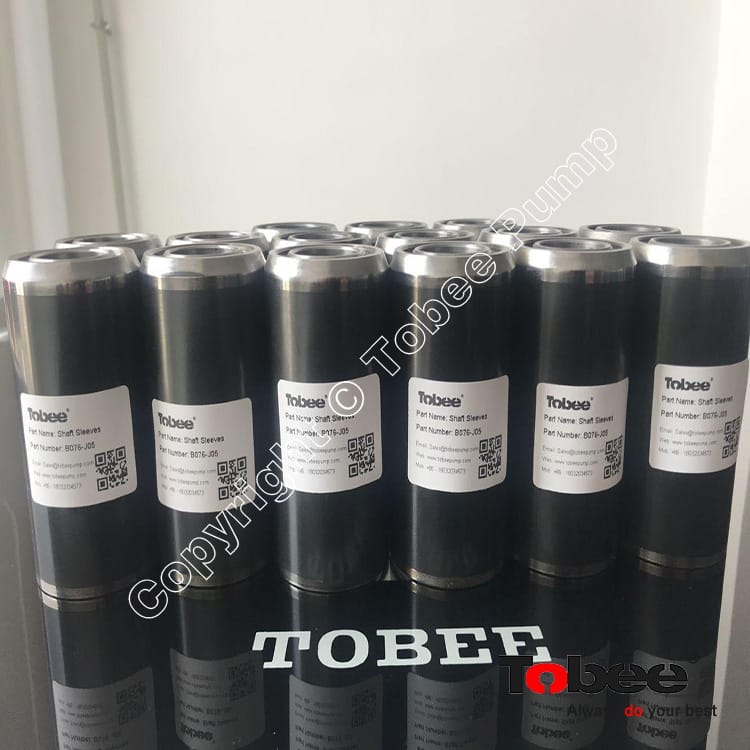

Tobee® Slurry Pump Ceramic Shaft Sleeve which has undergone destructive field tests for over 18 months, has proved to extend part life several times that of steel shaft sleeves on the same pump, same service. Total maintenance costs and down-time were reduced accordingly. Tobee's slurry pump ceramic shaft sleeves are precision formed of high density alumina, fired, and ground to size. The hardness of ceramics (9.0 to 9.5 MOH Scale) resists this destructive action, In addition, the ceramic coated sleeve surface is highly polished which, together with its lower co-efficient of friction, results in extended sleeve life and long service from the packing.
Slurry Pump Shaft Sleeves Code:
|
Shaft Sleeve Code |
AH Slurry Pump |
Shaft Sleeve Materials |
|
B076 |
1.5/1B-AH, 2/1.5B-AH |
SS420, SS304, SS316L, Ceramic |
|
C076 |
3/2C-AH, 4/3C-AH |
SS420, SS304, SS316L, Ceramic |
|
4/3D-AH, 6/4D-AH |
SS420, SS304, SS316L, Ceramic |
|
|
E076 |
6/4E-AH, 8/6E-AH, 8/6R-AH |
SS420, SS304, SS316L, Ceramic |
|
F076 |
8/6F-AH |
SS420, SS304, SS316L, Ceramic |
|
FAM076 |
10/8F-AH, 12/10F-AH, 14/12F-AH |
SS420, SS304, SS316L, Ceramic |
|
SH076 |
10/8ST-AH, 12/10ST-AH, 14/12ST-AH |
SS420, SS304, SS316L, Ceramic |
|
TH076 |
16/14TU-AH |
SS420, SS304, SS316L, Ceramic |
|
TH076 |
16/14TU-AH |
SS420, SS304, SS316L, Ceramic |
|
Shaft Sleeve Code |
HH Slurry Pump |
Shaft Sleeve Materials |
|
CH076 |
1.5/1C-HH |
SS420, SS304, SS316L, Ceramic |
|
D076 |
3/2D-HH |
SS420, SS304, SS316L, Ceramic |
|
E076 |
4/3E-HH |
SS420, SS304, SS316L, Ceramic |
|
F076 |
6/4F-HH |
SS420, SS304, SS316L, Ceramic |
|
Shaft Sleeve Code |
M Slurry Pump |
Shaft Sleeve Materials |
|
E076 |
10/8E-M |
SS420, SS304, SS316L, Ceramic |
|
F076 |
10/8F-M |
SS420, SS304, SS316L, Ceramic |
|
Shaft Sleeve Code |
L Slurry Pump |
Shaft Sleeve Materials |
|
A076 |
20A-L |
SS420, SS304, SS316L, Ceramic |
|
BSC076 |
50B-L |
SS420, SS304, SS316L, Ceramic |
|
C076 |
75C-L |
SS420, SS304, SS316L, Ceramic |
|
D076 |
100D-L |
SS420, SS304, SS316L, Ceramic |
|
E076 |
150E-L |
SS420, SS304, SS316L, Ceramic |
|
S076 |
300S-L |
SS420, SS304, SS316L, Ceramic |
|
Shaft Sleeve Code |
G(H) Gravel Pump |
Shaft Sleeve Materials |
|
D076 |
6/4D-G |
SS420, SS304, SS316L, Ceramic |
|
E076 |
8/6E-G |
SS420, SS304, SS316L, Ceramic |
|
F076 |
10/8F-G |
SS420, SS304, SS316L, Ceramic |
|
G076 |
12/10G-G, 14/12G-G, 12/10G-GH |
SS420, SS304, SS316L, Ceramic |
|
TH075 |
14/12TU-G,16/14TU-G,16/14TU-GH |
SS420, SS304, SS316L, Ceramic |
|
TH076 |
14/12TU-G, 16/14TU-G, 16/14TU-GH |
SS420, SS304, SS316L, Ceramic |
