150SV-SP Heavy Duty Sump Pump Shaft Sleeve Ejector SV077C21

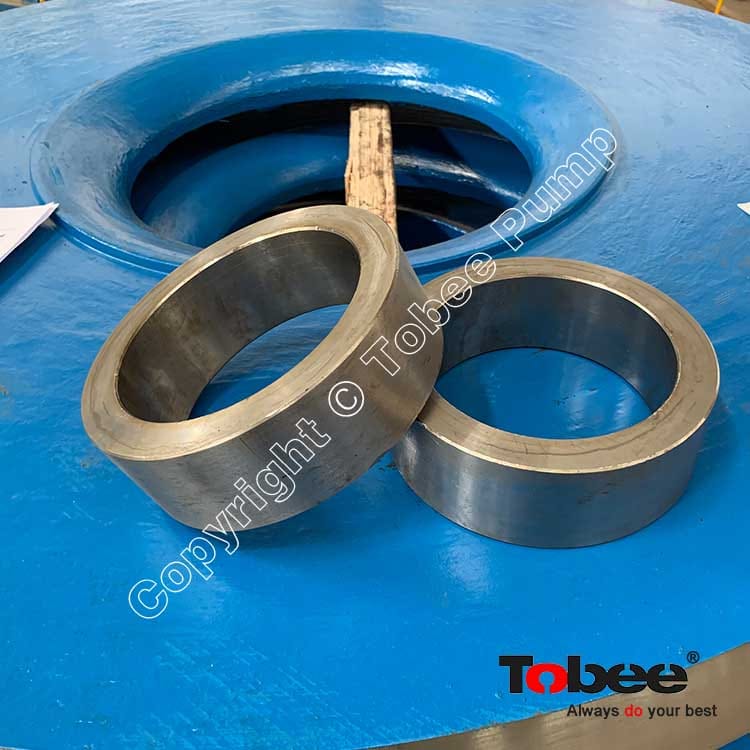

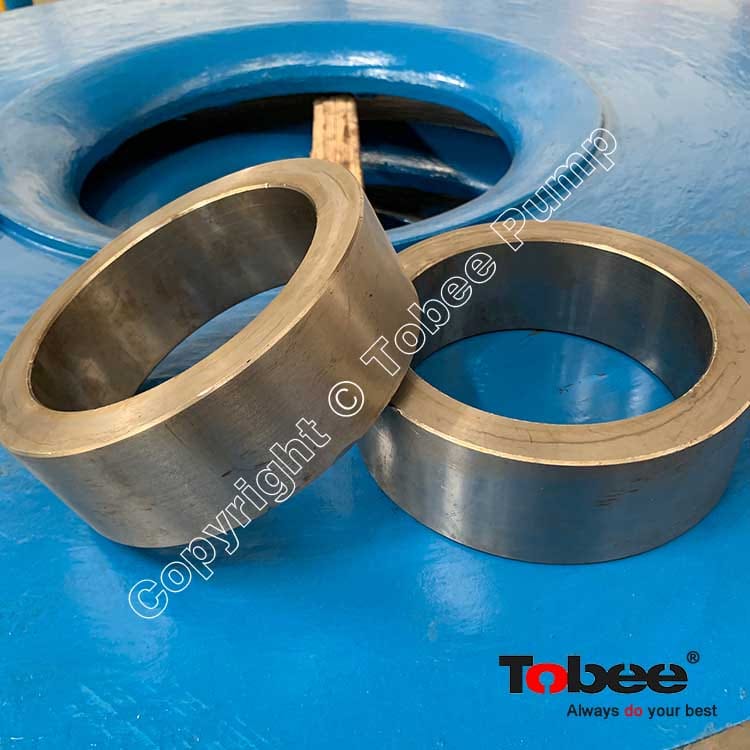

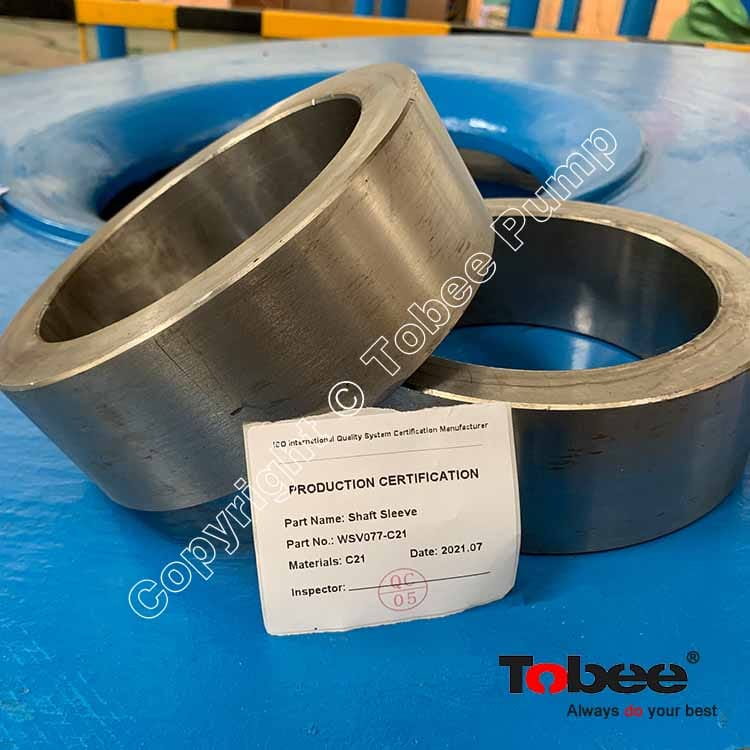

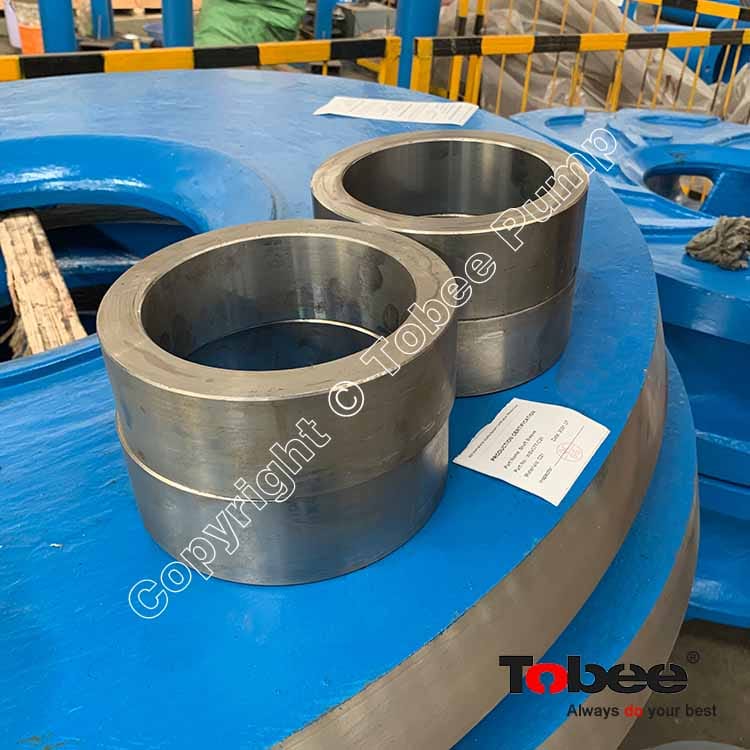

Shaft Sleeve Ejector SV077C21 is one of spare parts for 150SV-SP Heavy Duty Sump Pump.

150SV-SP Vertical Slurry Pump is available in a wide range of popular sizes to suit most pumping applications. Thousands of these pumps are proving their reliability and efficiency worldwide in Minerals processing, Coal preparation, Chemical processing, Effluent handling, Sand and gravel and almost every other tank, pit or hole-in-the ground slurry handling situation.

Design features:

• Fully Cantilevered - Eliminates submerged bearings, packing, lip seals, and mechanical seals that other vertical slurry pumps typically require.
• Impellers - Unique double suction impellers; fluid flow enters the top as well as the bottom. This design eliminates shaft seals and reduces thrust load on the bearings.
• Large Particle - Large particle impellers are also available and enable passing unusually large solids.
• Bearing Assembly - The maintenance friendly bearing assembly has heavy duty roller bearings, robust housings, and a massive shaft.
• Casing - The metal pumps have a heavy walled abrasive resistant Cr27Mo chrome alloy casing. Rubber pumps have a molded rubber casing adhered to sturdy metal structures.
• Column and Discharge Pipe - The metal pump columns and discharge pipes are steel, and the rubber columns and discharge pipes are rubber covered.
• Upper Strainers - Snap in elastomer strainers fit in column openings to prevent overly large particles and unwanted refuse from entering casing of the pump.
• Lower Strainers - Bolt-on cast strainers on the metal pump and molded snap-on elastomer strainers on the rubber pumps protect the pump from oversize particles.

Tobee® 150 SV SP Vertical Slurry Pumps Applications:

Tobee® Vertical Sump Pumps widely used for Mining, Mineral Processing, Sand and Gravel, Coal Prep, Chemical Slurry Service, Cyclone Feeds, Aggregate Processing, Wet crushers, SAG mill discharge, Fine Primary Mill Grinding, Tailings, Secondary Grinding, Bottom/fly ash slurries, Pulp And Paper, Food Processing, Cracking Operations, Gypsum slurries, Pipeline Transport, High Velocity Hydraulic Transport,Food Processing, Explosive Sludge In Metal Smelting, River And Pond Dredging, Heavy Refuse Removal, Larger Particle Or Low NPSHA Applications, Continuous (Snore) Sump Pump Operation, Abrasive Slurries, High Density Slurries, Large Particle Slurries, Sump Drainage, Wash down, Floor Drainage, Mixing, Iron Ore, Cooper, Diamond, Aluminum oxide, Gold, Kaolin, Phosphorite, Steel, Palm, Suger, Chemical, Power, FGD, Frac Sand Blending, Waste water, Flotation etc.

150SV-SP Vertical Pump Parts List:
