Name: 150SV-SP Vertical Industrial Submersible Pumps
Price: 21000.00 USD

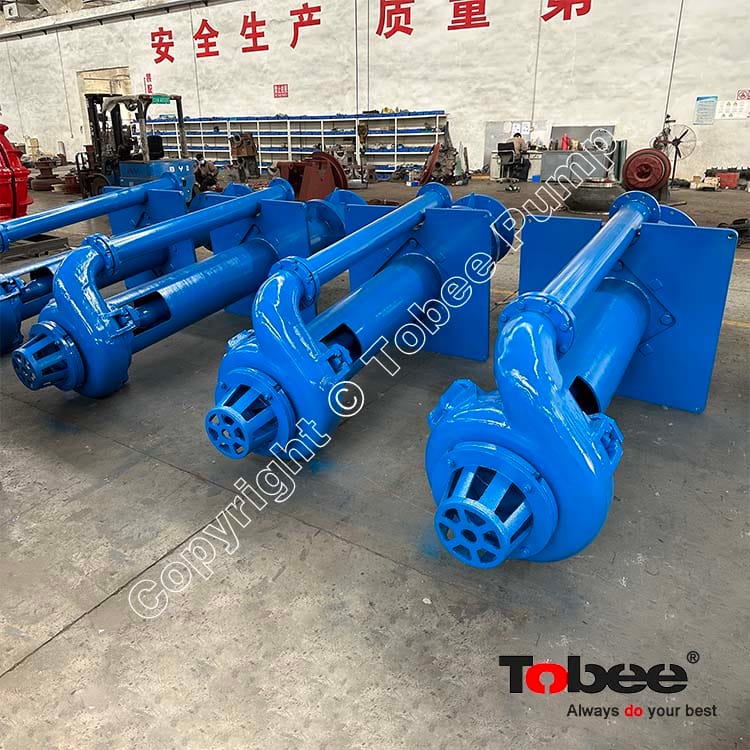

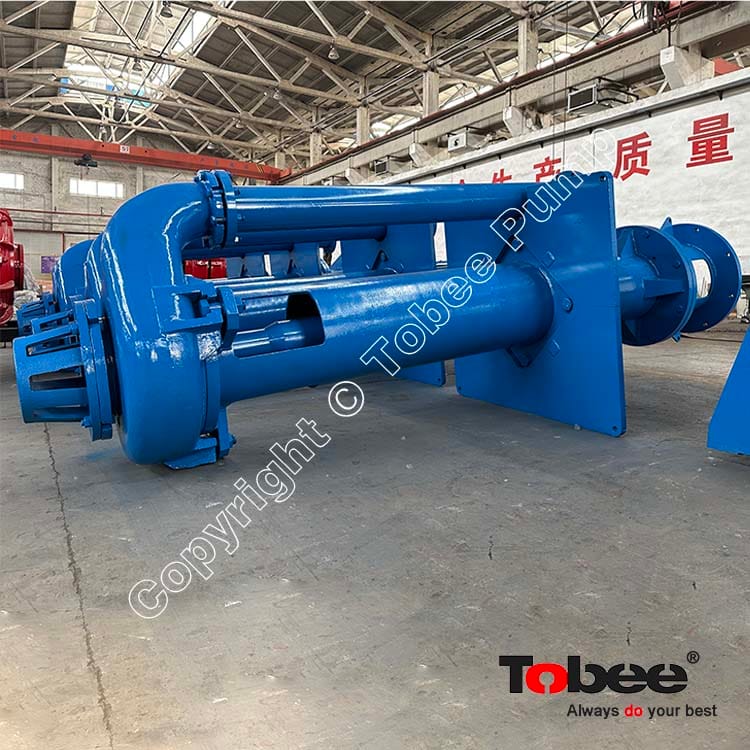

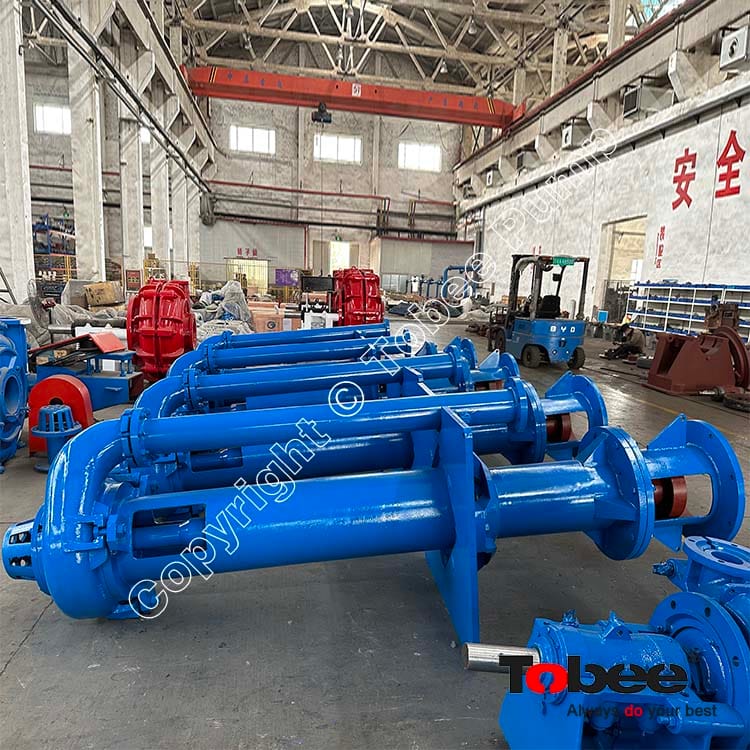

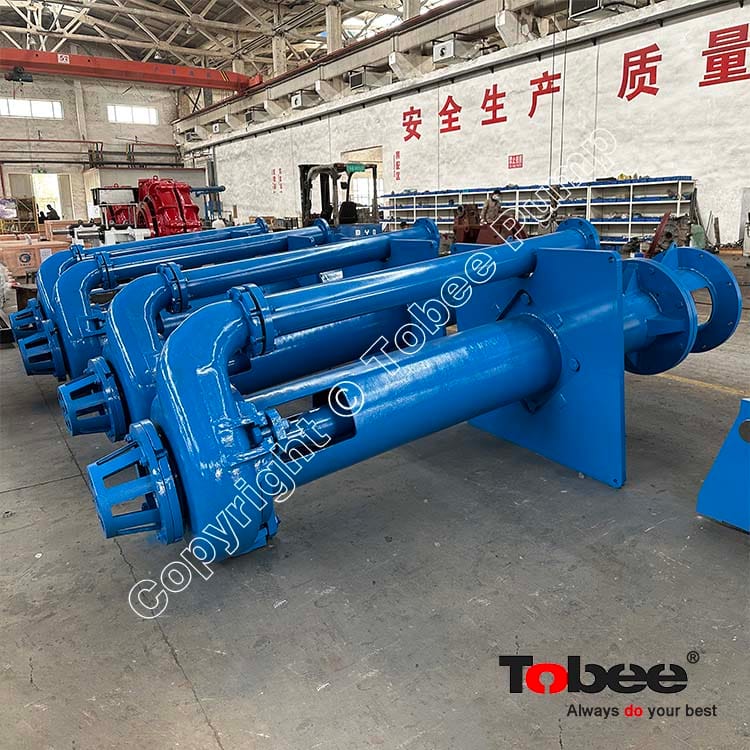

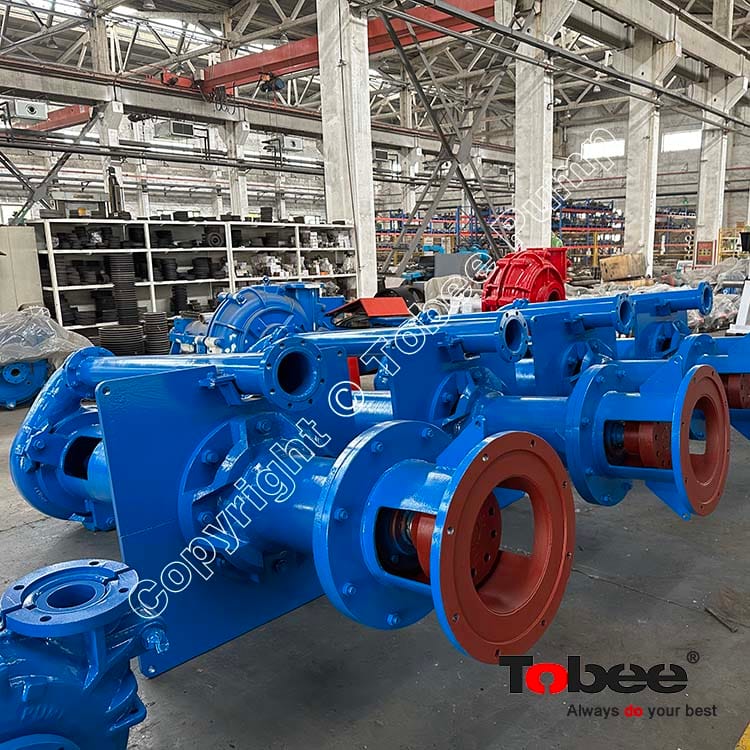

150SV-SP Vertical Industrial Submersible Pumps

Product Brands: Tobee

Tobee® 150SV-SP Vertical Slurry Pump is available in a wide range of popular sizes to suit most pumping applications. Thousands of these pumps are proving their reliability and efficiency worldwide in Minerals processing, Coal preparation, Chemical processing, Effluent handling, Sand and gravel and almost every other tank, pit or hole-in-the ground slurry handling situation.

Add to Favorite Items (0)

Sales: 0+

Tobee^® SP/SPR vertical slurry pump is designed for applications requiring greater reliability and durability than conventional vertical process pumps can offer. Fully elastomer lined or hard metal fitted. No submerged bearings or packing. High capacity double suction design. Customized submerged length and suction agitator available. The SP/SPR vertical sump pump ideally suited for heavy continuous handling of abrasive and corrosive liquids and slurries whilst submerged in sumps or pits.

Design features:
• Fully Cantilevered - Eliminates submerged bearings, packing, lip seals, and mechanical seals that other vertical slurry pumps typically require.
• Impellers - Unique double suction impellers; fluid flow enters the top as well as the bottom. This design eliminates shaft seals and reduces thrust load on the bearings.
• Large Particle - Large particle impellers are also available and enable passing unusually large solids.
• Bearing Assembly - The maintenance friendly bearing assembly has heavy duty roller bearings, robust housings, and a massive shaft.
• Casing - The metal pumps have a heavy walled abrasive resistant Cr27Mo chrome alloy casing. Rubber pumps have a molded rubber casing adhered to sturdy metal structures.
• Column and Discharge Pipe - The metal pump columns and discharge pipes are steel, and the rubber columns and discharge pipes are rubber covered.
• Upper Strainers - Snap in elastomer strainers fit in column openings to prevent overly large particles and unwanted refuse from entering casing of the pump.
• Lower Strainers - Bolt-on cast strainers on the metal pump and molded snap-on elastomer strainers on the rubber pumps protect the pump from oversize particles.

Tobee^® 150SV-SP Vertical Slurry Pumps Performance Parameters:

Model

Matching power P

(kw)

Capacity Q

(m3/h)

Head H

(m)

Speed n

(r/min)

Eff.η

(%)

Impeller dia.

(mm)

Max.particles

(mm)

Weight

(kg)

150SV-SP(R)

11-110

108-576

8.5-40

500-1000

450

1737

Tobee^® TP Vertical Slurry Pump Component Design:

Tobee^® TP(R) Vertical Slurry Pump 3 kinds of inlet construction:

Tobee^® 150 SV SP Vertical Slurry Pumps Applications:

Tobee® Vertical Sump Pumps widely used for Mining, Mineral Processing, Sand and Gravel, Coal Prep, Chemical Slurry Service, Cyclone Feeds, Aggregate Processing, Wet crushers, SAG mill discharge, Fine Primary Mill Grinding, Tailings, Secondary Grinding, Bottom/fly ash slurries, Pulp And Paper, Food Processing, Cracking Operations, Gypsum slurries, Pipeline Transport, High Velocity Hydraulic Transport,Food Processing, Explosive Sludge In Metal Smelting, River And Pond Dredging, Heavy Refuse Removal, Larger Particle Or Low NPSHA Applications, Continuous (Snore) Sump Pump Operation, Abrasive Slurries, High Density Slurries, Large Particle Slurries, Sump Drainage, Wash down, Floor Drainage, Mixing, Iron Ore, Cooper, Diamond, Aluminum oxide, Gold, Kaolin, Phosphorite, Steel, Palm, Suger, Chemical, Power, FGD, Frac Sand Blending, Waste water, Flotation etc.
