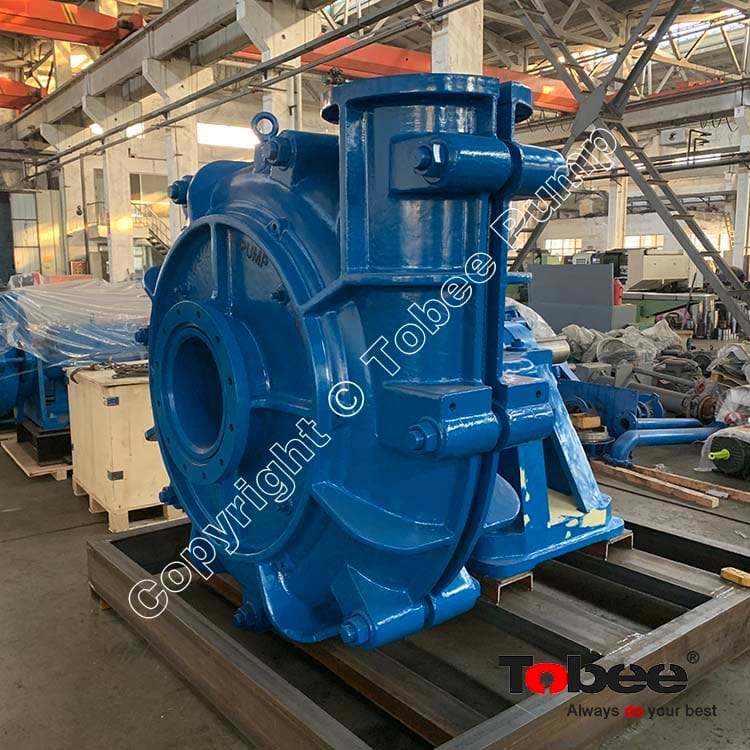

Tobee® AH Series Slurry Pumps are the most comprehensive range of centrifugal slurry pumps for use in mining, minerals processing, coal preparation, dredging, metallurgy, power plant, chemical and general industry applications. The wetted parts materials designed by High abrasion and corrosion resistance alloy, rubber or polyurethane etc, Expecially for handling high abrasive, high density slurries.
Design Features:
Power End
√ Labyrinth bearing isolators to protect internal components during wash-down cycles.
√ Clearances can be easily adjusted to maintain efficiency while optimizing performance and extending wear life.
√ Over-sized, self-aligning spherical roller bearings for trouble free operation.
√ Heavy duty bearing assembly, 50,000 hour minimum L10 bearing life, Distortion free bearing clamp system ensures maximum bearing life and prevents premature fatigue.
Wet End
√ Maintenance friendly split casing for elastomer liners (lined wet end).
√ Static vanes reduce wear and prevent erosion.
√ Tangential discharge improves efficiency and reduces wear.
√ Optimized hydraulics for high efficiency and low wear.
√ Dowel pins for easy and accurate split case alignment (lined wet end).
√ Ribs designed for optimized strength/weight.
√ Static suction vanes extend wear life (metal wet end).
√ Patented flange system for ease of maintenance (metal wet end).
√ Adjustable suction cover on sizes 200 and larger to optimize efficiency and minimize wear.
Sealing arrangements:
√ Packed gland with expeller configuration (other sealing options available).
√ Split stuffing box for simplified installation and adjustments.
√ Mating shaft sleeves with engineered materials for extended life.

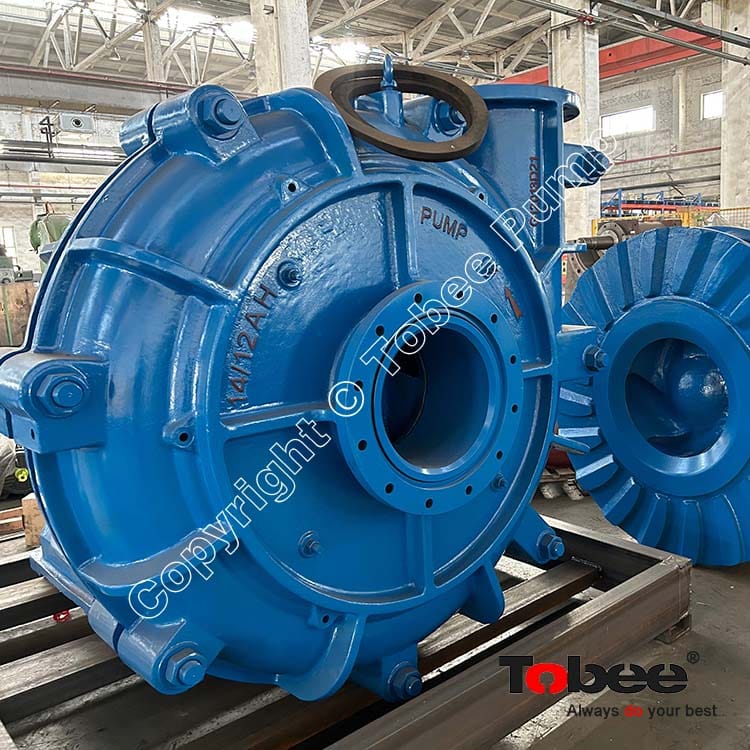

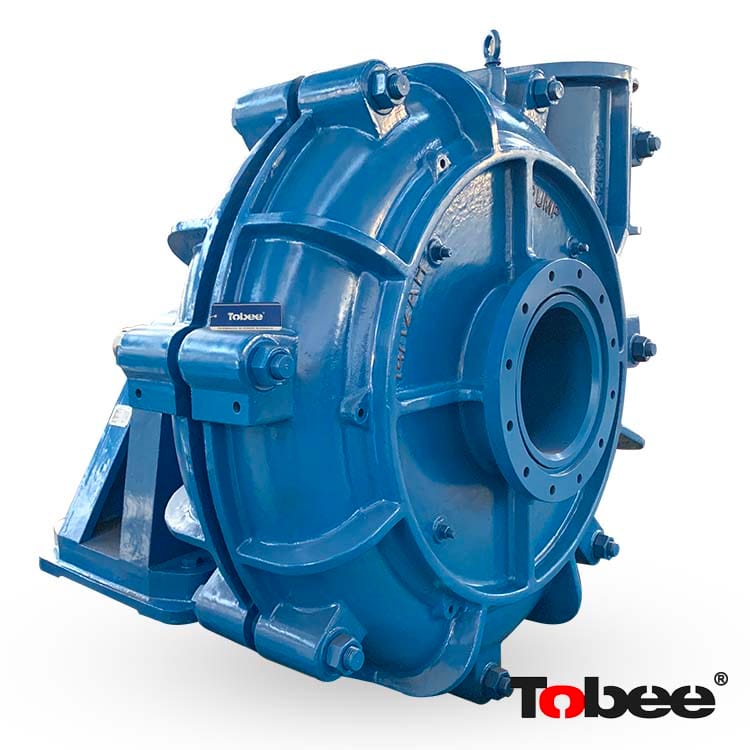

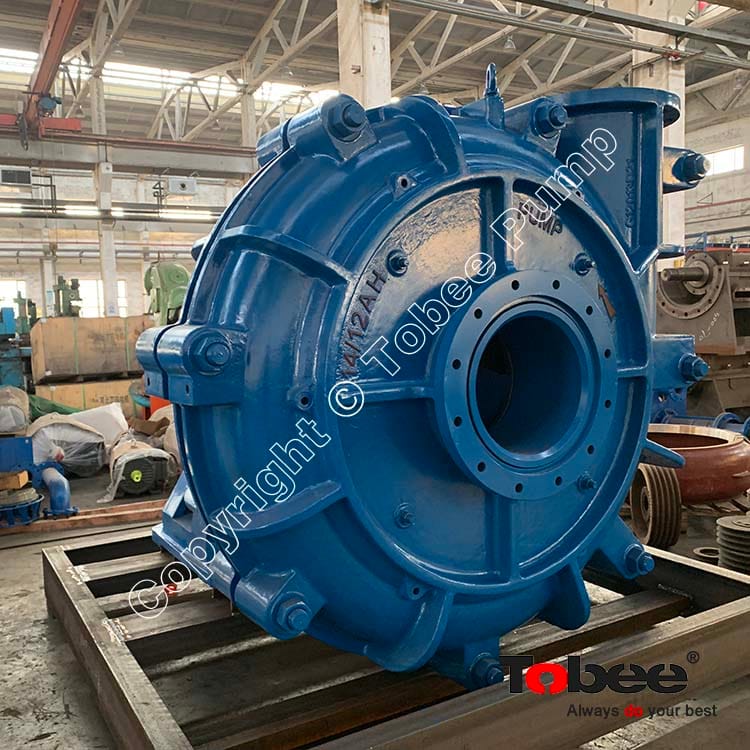

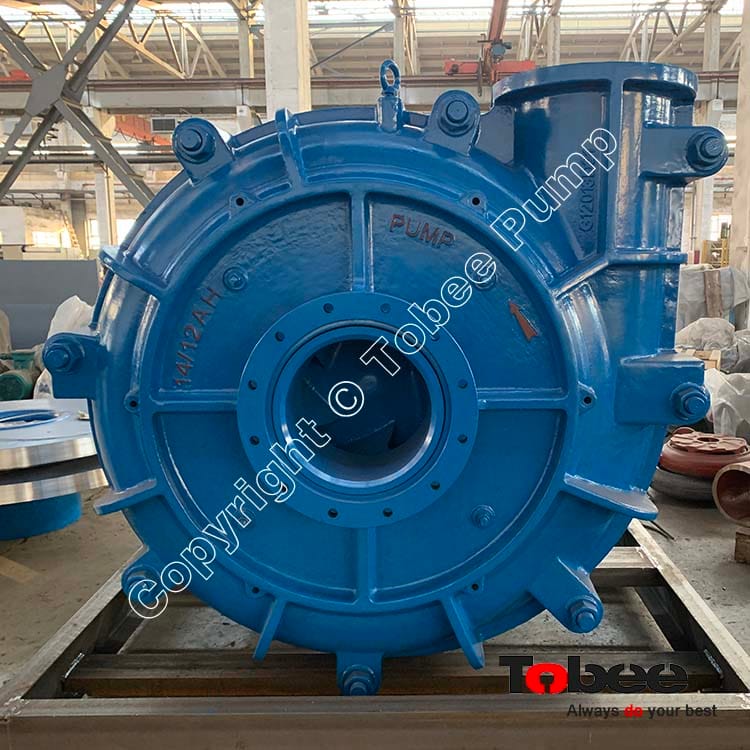

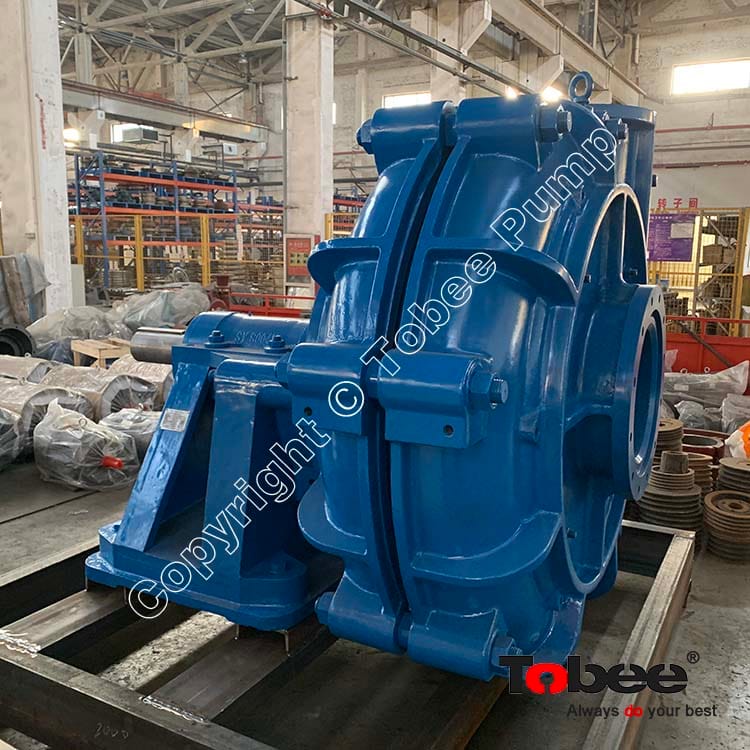

Tobee® 14/12 ST AH Slurry Pumps Performance Parameters:
|
Model |
Max. Power (kw) |
Materials |
Clear Water Performance |
Impeller Vane No. |
|||||
|
Liner |
Impeller |
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. η (%) |
NPSH (m) |
|||
|
560 |
Metal |
Metal |
1260~2772 |
13~63 |
300~600 |
77 |
3~10 |
5 |
|
Tobee® AH Series Slurry Pumps Applications:
AH Series slurry pumps can be used in various of applications, like Minerals processing, Pipeline transport, High velocity hydraulic transport, Coal prep, Cyclone feeds, Aggregate processing, Fine primary mill grinding, Chemical slurry service, Tailings, secondary grinding, Industrial processing, Pulp and paper, Food processing, Cracking operations, Ash handling etc.
Accroding to different working conditions, AH series slurry pumps can be use as minerals process pump, Booster sand pump, Gypsum slurry pump, Classifying Cyclone Feed Pump, Dewatering Screen Pump, Thickner Area Sump Pump, Tailings Pump, Metboom Pump, Feedprep Pump, Scavenger Feed Pump, DMC Feed Pump, Thickener U/F Pump, Re-Cleaner Pump, Ball mill discharge Pump, Ruffer Feed Pump, Fines Area Sump Pump, Transfer to feedprep Pump, Metboom Return Pump, Slime Pond Sump Pump, Thickner Underflow Pump, Thickner Tailings Pump, Thickner Underflow Pump, Magnetite Sump Slurry Pump, Rinse Pump, Dilute Pump, Re-Cleaner Pump, Rougher Feed Pump, Tailings booster Pump, Dilute Medium Slurry Pump, Mill slurry Pump, Mill feed water Pump, Disc filter basin flushing Pump, Correct Medium Slurry Pump, Mixing tank slurry Pump, Centrifuge Effl. Transfer Slurry Pump, Fines Refuse Effl. Transfer Pump, Gas cleaning slurry Pump, Windbox slurry Pump, Pellet hand scrubber slurry pump, Process recycle Pump, Scrubber slurry Pump, Prop pellets undersize Pump, Screen feeder Pump, Furn disch scrubber slurry Pump, BPF Filtrate Effl. Pump, Cosmetic recycle water Pump, Backwash Pump, Venturi scrubber slurry pump, Clarifier underflow pump, Pipeline transfer pump etc.
