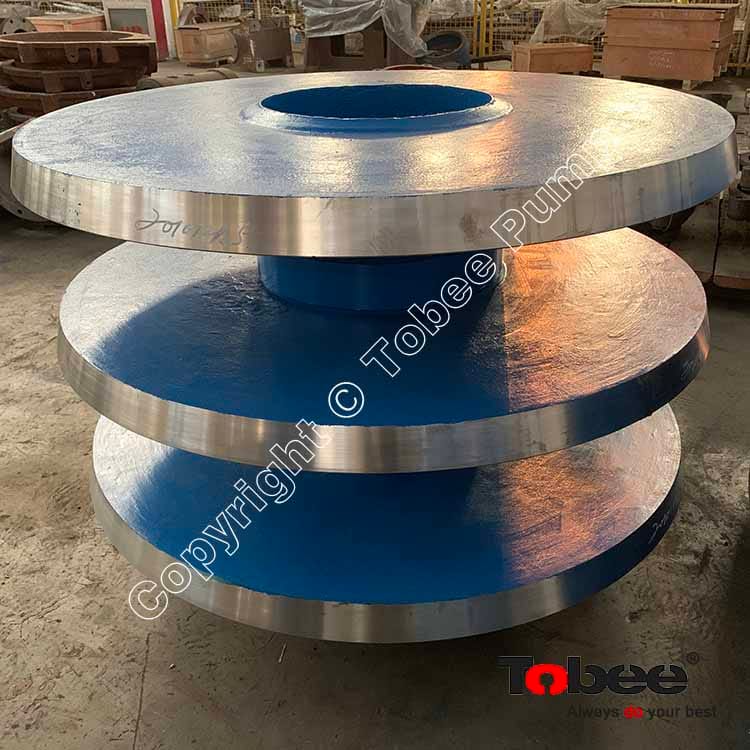

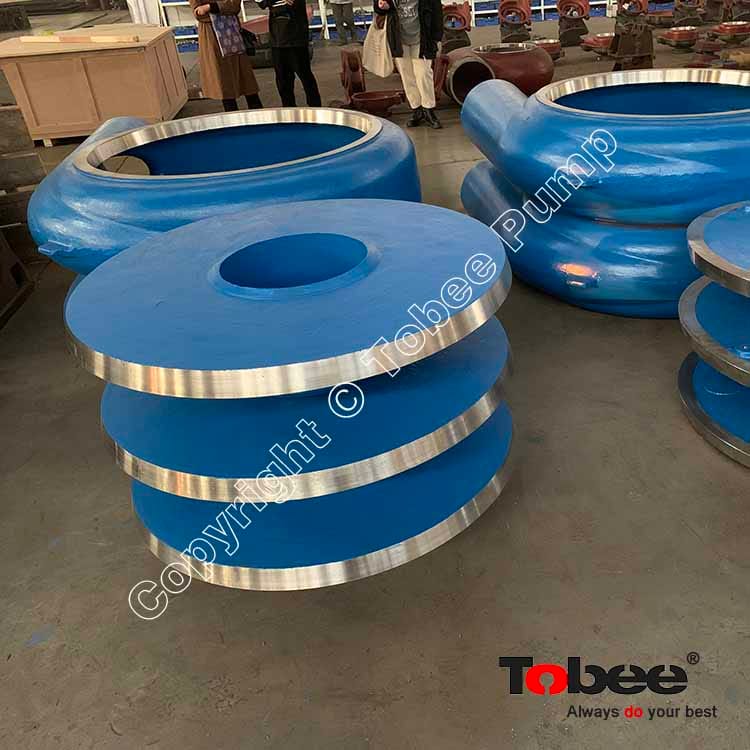

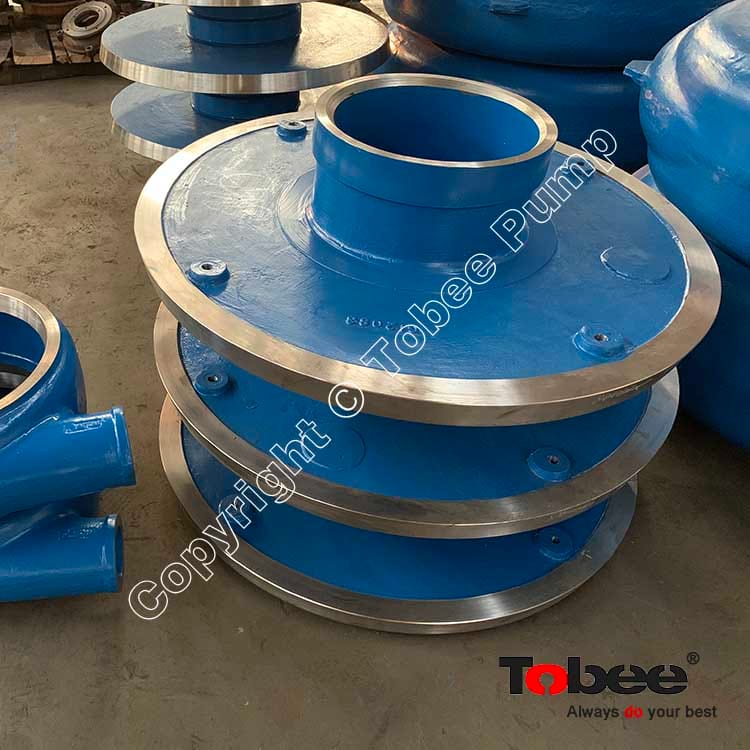

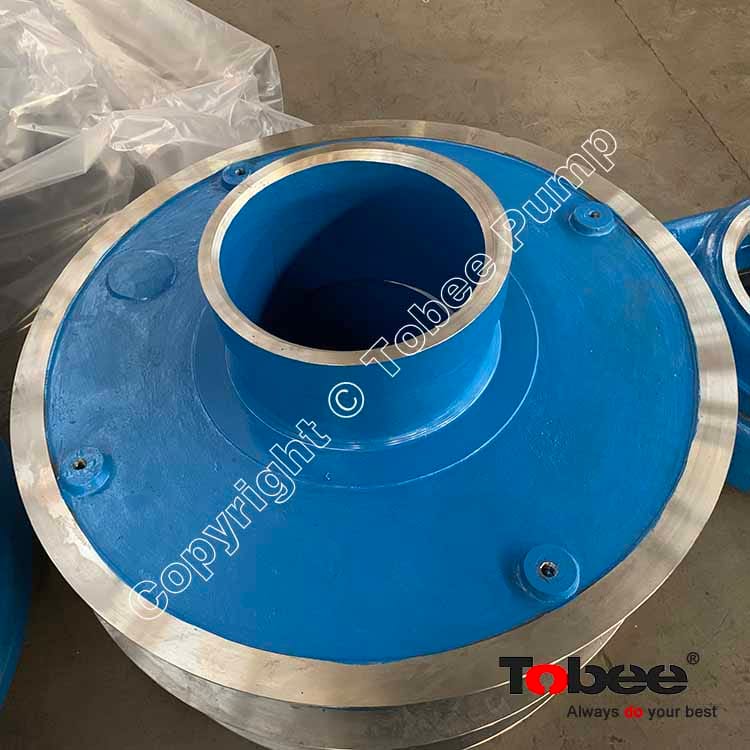

High Chrome Slurry Pump Parts Throatbush G12083A05 as one of wet end parts for 14/12G-AH Horizontal Slurry Pump and 14/12ST-AH Horizontal Slurry Pump.
Tobee Slurry Pump Throat Bush G12083 is interchangeable with 14/12 AH slurry pump throat bush, It links plate liner and forms a Pump chamber to work with impeller, as one of wetted parts for the slurry pump, Its wear-resistance is very important to pump work-life. Tobee offers Cr27Mo high chrome alloy which is high abrasion resistance, and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
For the chrome alloy throatbush, the standard is High chrome Alloy(27% Cr), it can be used from PH 5 to 12, and its hardness can be to HRC65, which is a very good choice for slurry control and transport. But in some conditions, the PH may lower than 5, then we try to use A49, it can lower to PH4, mostly used in FGD processing, Tobee offers the full chrome alloy parts including A03, A04, A05, A06, A07, A12, A14, A25, A33, A49, A51, A61 etc.
Slurry Pump Interchangeable Throatbush Codes:
|
Throatbush Code |
Tobee TH Slurry Pump |
AH Slurry Pump |
Materials |
|
TH6/4D, TH6/4E |
6/4D-AH, 6/4E-AH |
High chrome, Natural rubber, Polyurethane |
|
|
TH8/6E, TH8/6F |
8/6E-AH, 8/6F-AH |
High chrome, Natural rubber, Polyurethane |
|
|
G8083 |
TH10/8F, TH10/8ST |
10/8F-AH, 10/8ST-AH |
High chrome, Natural rubber, Polyurethane |
|
G10083 |
TH12/10ST |
12/10ST-AH |
High chrome, Natural rubber, Polyurethane |
|
TH14/12ST |
14/12ST-AH |
High chrome, Natural rubber, Polyurethane |
|
|
H14083 |
TH16/14TU |
16/14TU-AH |
High chrome, Natural rubber, Polyurethane |
|
Throatbush Code |
Tobee THH Slurry Pump |
HH Slurry Pump |
Materials |
|
THH3/2D |
3/2D-HH |
High chrome, Polyurethane |
|
|
DH3083 |
THH4/3D |
4/3E-HH |
High chrome, Polyurethane |
|
FH4083 |
THH6/4F |
6/4F-HH |
High chrome, Polyurethane |
|
Throatbush Code |
Tobee TG(H) Gravel Pump |
G(H) Gravel Pump |
Materials |
|
GG1412013-1 |
TGH12/10G |
12/10G-G |
High chrome |
|
GGH10013 |
TGH12/10G |
12/10G-GH |
High chrome |
|
FGH8013 |
TGH10/8S |
10/8S-GH |
High chrome |
|
HG14130M |
TGH16/14TU |
16/14TU-GH |
High chrome |
Tobee® 14/12 ST AH Slurry Pumps Applications:
The 14/12 ST AH Slurry Pumps are widely used to transport high-hardness, strong-corrosion and high-concentration liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones, lime and etc. in the industries of metallurgy, mining, coal, power, building material and etc. The temperature of the pumped solid-liquid mixture should be ≤80℃, and the weight concentration should be ≤60.
