G12110A05 Volute Liner for 14x12F-AH Slurry Pump

Product Brands: Tobee

G12110A05 Volute Liner can be installed on 14/12F-AH Slurry Pump.

price:

$6999.00 $7300.00

Parts Code:

G12110A05

Pump model:

14/12F-AH 14/12ST-AH

Metal Materials:

A05 A07 A49 A61 A33 A05A

Quantity:

- + (14 available)

Add to Favorite Items (15)

Sales: 4+

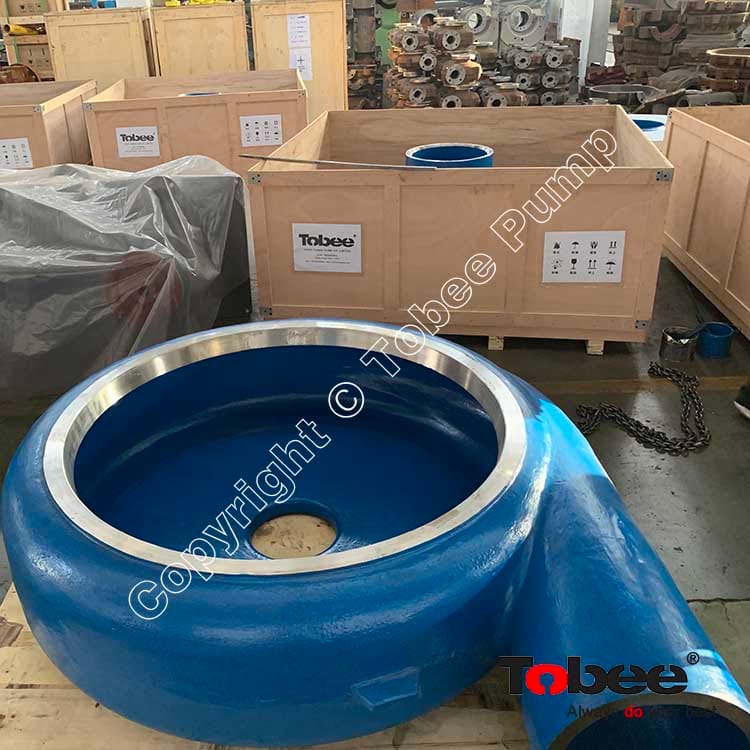

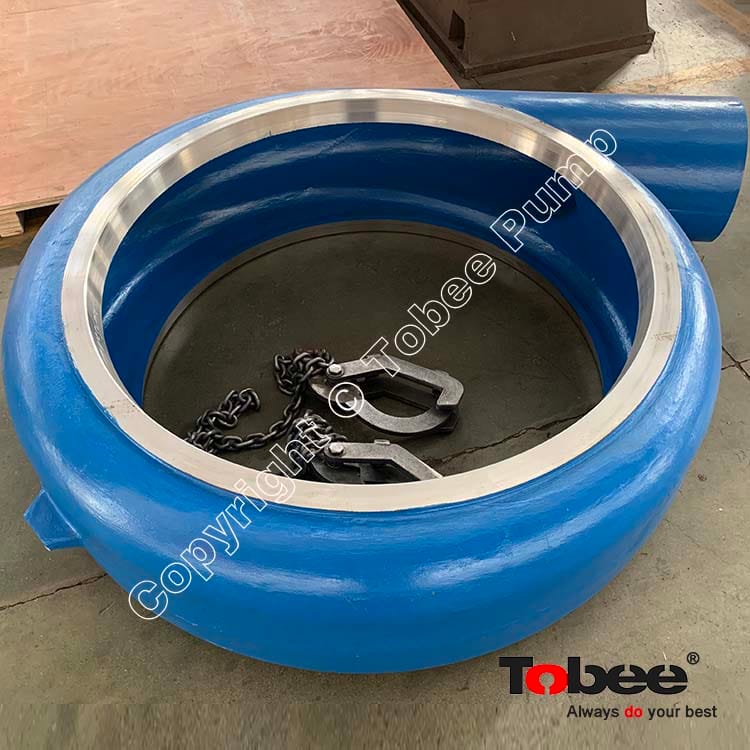

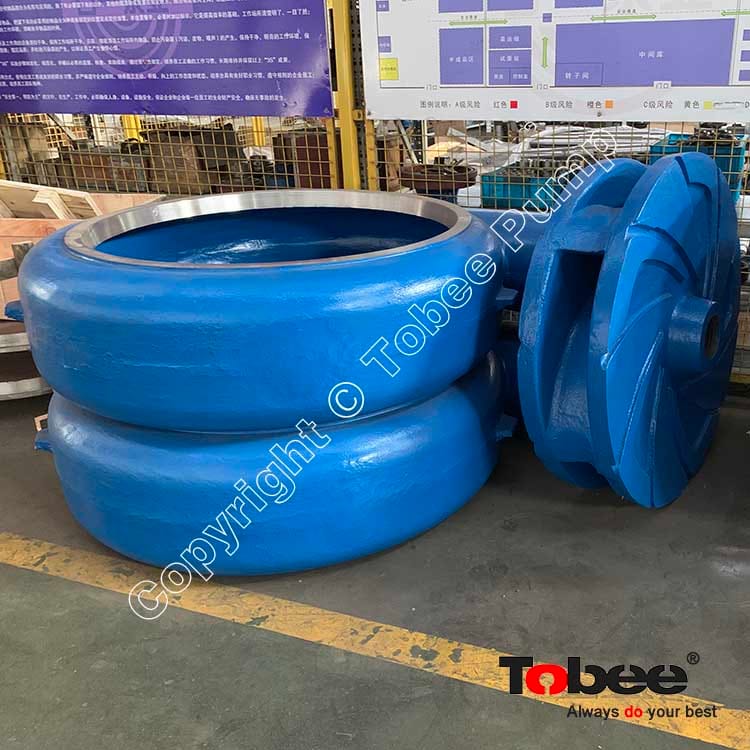

G12110A05 Volute Liner is an important wear part for 14/12F-AH Slurry Pump & 14/12ST-AH Slurry Pump.

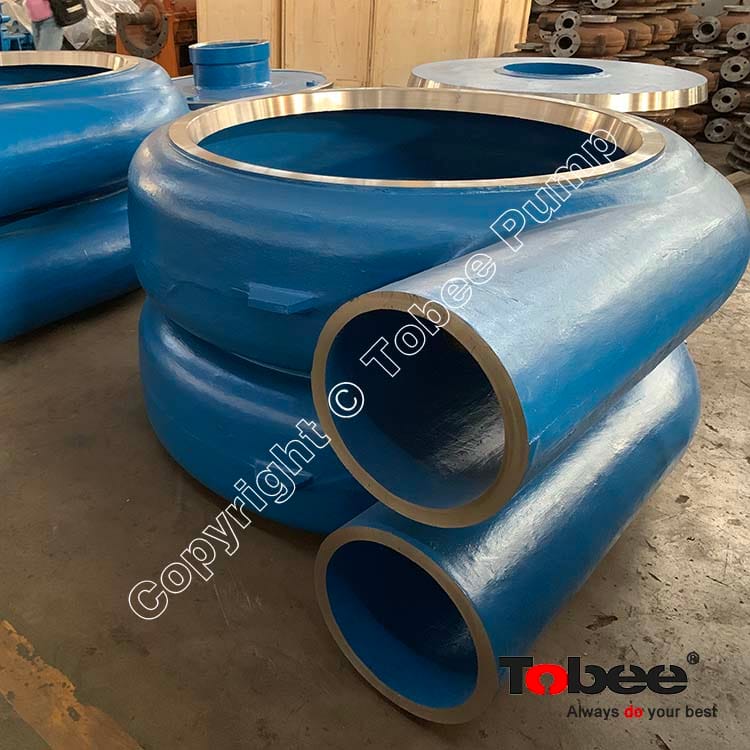

Slurry Pump Volute Liner forms a slurry pump chamber with throat bush and frame plate liner insert where the slurry would flow through them. Slurry volute liner is a curved funnel increasing in area to the discharge port. It is often used with slurry pump impeller. As the area of the cross-section increases, the volute reduces the speed of the liquids and increases the pressure of the liquids. The main purposes of a volute liner is to help balance the hydraulic pressure on the shaft of the slurry pump.

Slurry pump volute liners are slower than water pumps with large clearance at the cutwater, this volute form gives a little less efficiency compared with water pumps. However, this volute form reduce wear through lower internal velocities, and this is best compromise between wear life and efficiency.

Slurry Pump Spare Parts Code:

Code	1.5/1 AH	2/1.5 AH	3/2 AH	4/3 AH	6/4 AH	8/6 AH	10/8 AH	12/10 AH	14/12 AH	16/14 AH
003	B003M	B003M	C003M	C003M	D003M	E003M	FAM003M	ST003M	ST003M	TU003
004	B004M	B004M	C004M	C004M	D004M	E004M	F004M	S004M	S004M	T004M
005	B005M	B005M	C005M	CAM005M	DAM005M	EAM005M	FAM005M
011	B011	B011	C011	C011	D011	E011	F011			T008
013	B1013	B15013	C2013	D3013	E4013	F6013	G8013	F011	F011	T011
015	B015M	B015M	C015M	D015M	E4015M	F6015M	G8015M
017	B1017	B15017	C2017	D3017				G10013	G12013	H14013
018					E4018R	F6018		G10015M	G12015M	H14015M
024	B024	B024	C024	C024	D024	E024	F024
028	B028	B028	C028	D028	DAM028	EAM028		S024	S024	T024
029	B029	B029	C029	CAM029	DAM029	EAM029		S025	S025
029R	B029R	B029R	C029R	CAM029R	DAM029R	EAM029RM		SH028	SH028	TH028
032	B1032	B15032	C2032	CAM3032	DAM4032	EAM6032	G8032	G029	G029	H029
036	B1036	B15036	C2036	D3036	E4036R	F6036
041	B1041NA	B15041NA	C2041	D3041	E4041	F6041	G8041	G10032	G12032	H14032
044	B044	B044	C044	C044	D044	E044	G044
046	B046	B046	C046	C046	D046	E046	F046	G10041	G12041	H14041
052	B1052							G044	G044	H044
060	B1060	B15060	C2060	D3060	E4060		G8060
061	B061	B061	C061	C061	D061	E061	F061
062	B062	B062	C062	C062	D062	E062	FAM062	G10060	G12060	H14060
063	B063	B063	C063	C063	D063	E063	G063
064				D064	F064	F064		S062DM	S062DM	T062DM
067	B067	B067	C067	C067	D067	E067	G067	G063	G063	H063
073	B073M	B073M	C073M	CAM073M	DAM073M	EAM073M	FAM073M			TH064
075	B075	B075	C075	C075	D075	E075	FAM075	G067	G067	H067
076					DAM076JM			SH073M	SH073M	TH073
078	B078	B078JM	C078	CAM078	DAM078	EAM078	G078	SH075	SH075	TH075
081						F6081		SH076	SH076	TH076
083					E4083R	F6083	G8083	G078JM	G078	H078
090	B090	B090	C090	C090	D090
108	B108		C108		D108		F108	G10083	G12083	H14083
109	B109	B109	B109	C109	D109	E109	F109	G090
110	B1110NA	B15110NA	C2110NA	D3110	E4110	F6110	G8110
117	B117	B117	C117	CAM117	DAM117	EAM117	G117	G109		T109
118	B118	B118	C118	C118	D118	E118	G118	G10110	G12110	H14110
122	B122	B122	C122	D122	E122	F122	G122
124					E4124		G8124	G118	G118	H118
125	B1125	B15125	C2125	D3125				G122	G122	H122
127	B1127NA	B15127NA	C2127					G10124	G12124	H14124
132	B1132XL	B15132L	C2132XLP	D3132XLP	E4132XLP	F6132XLP	G8132XLP	G10132XLP	G12132XLP	H14132L
138	B138	B138	D138	D138	D138	D138		G138	G138	G138
147			C2147	D3147NA	E4147R	F6147R	FAM8147
217	B217	B217	C217					G10147	G12147	GAM14147
239							FAM239M	CSC210	CSC210
241					D241	E241		S239M	S239M	T239M
302						F6302				H14302
303						F303
304						F6304		G10304	G12304	H14304
315										T315
