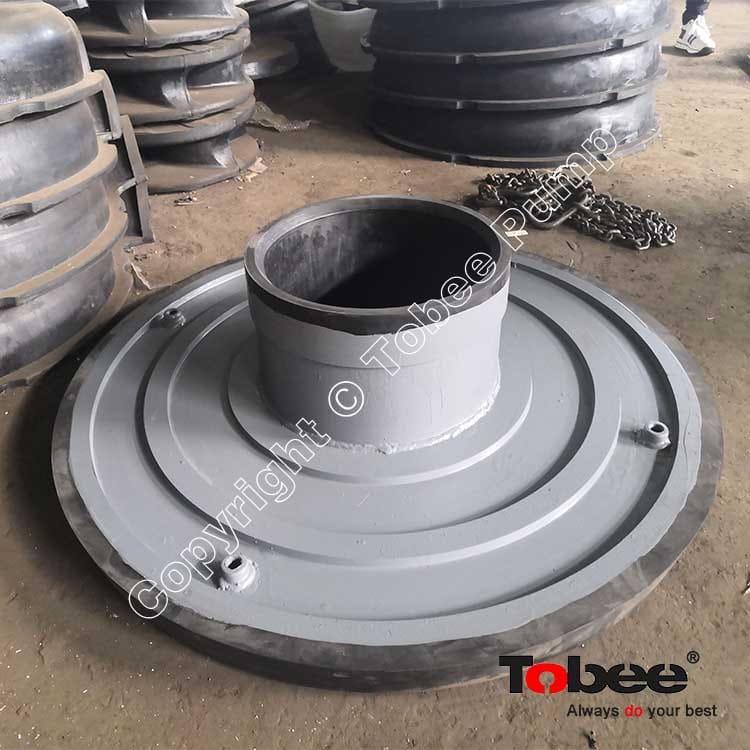

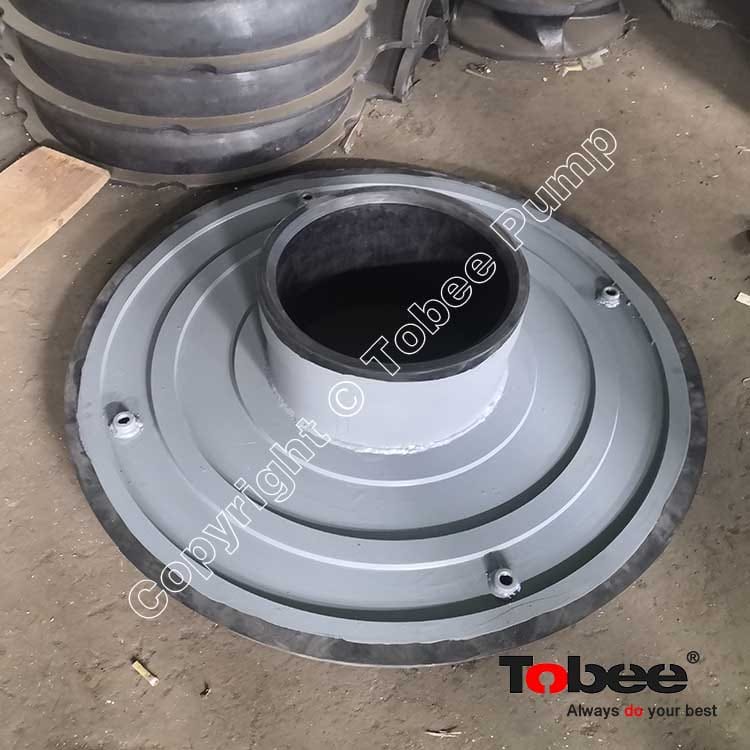

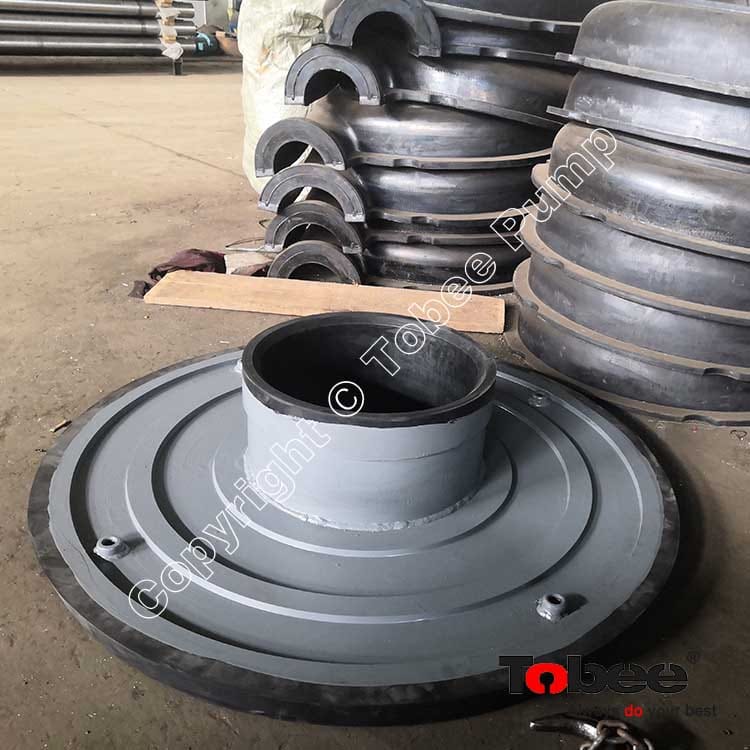

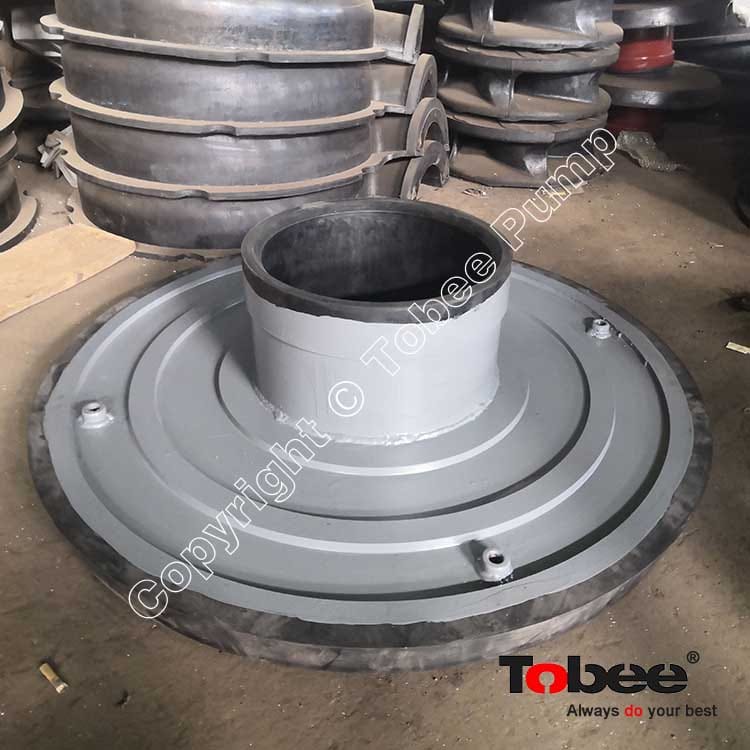

Slurry Pump Throatbush G12083WR-R55 is rubber material used for 14x12 AH Rubber Pumps. The slurry pump impeller and slurry pump throatbush combination with improved hydraulic profiles, reduced turbulence, extended wear performance and lowered power consumption.
Slurry Pump Throatbush links plate liners to forms a Pump chamber to work with slurry pump impeller, as one of wetted parts for slurry pump, Its wear-resistance is very important to pump work-life.
Slurry Pump Parts Design Benefits:
• Increased wear life – the upgrade impeller and throatbush combination is designed to increase wear life between 30% and 50%
• Power savings – lower pump power consumption
• Cost reduction – higher pump efficiency sustained over a longer pumping operation time
• Lower NPSH requirements – results in enhanced hydraulic performance and extended wear life
• Material combinations – rubber or metal part combinations available
Tobee® Replacement Slurry Pump Throat bush Parts Code：
Throatbush Code | Slurry Pump Models |
E4083 | 6/4D-AH, 6/4E-AH |
F6083 | 8/6E-AH, 8/6R-AH, 8/6F-AH |
G8083 | 10/8F-AH, 10/8ST-AH |
G10083 | 12/10F-AH, 12/10ST-AH |
G12083 | 14/12F-AH, 14/12ST-AH |
H14083 | 16/14TU-AH |
SL30083 | 300S-L |
F8083 | 10/8E-M, 10/8F-M, 10/8R-M |
F10083 | 12/10E-M, 12/10F-M, 12/10R-M |
DH2083 | 3/2D-HH |
EH3083 | 4/3E-HH, 4/3R-HH |
FH4083 | 6/4F-HH |
