Product Description:

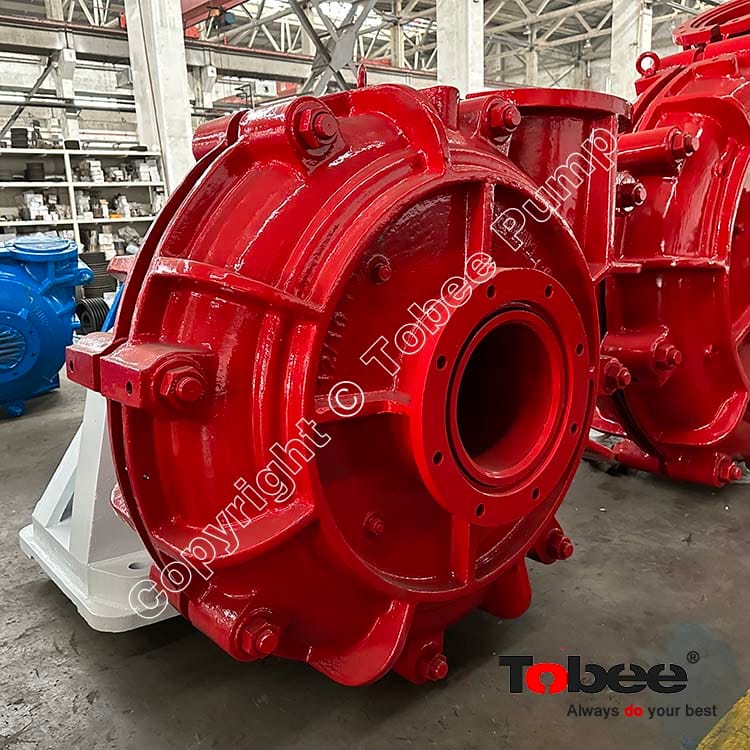

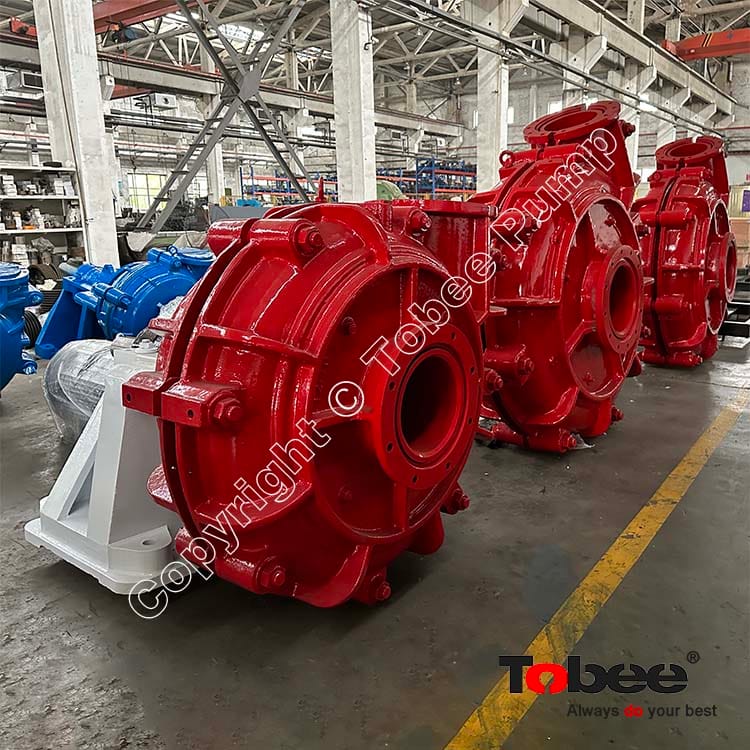

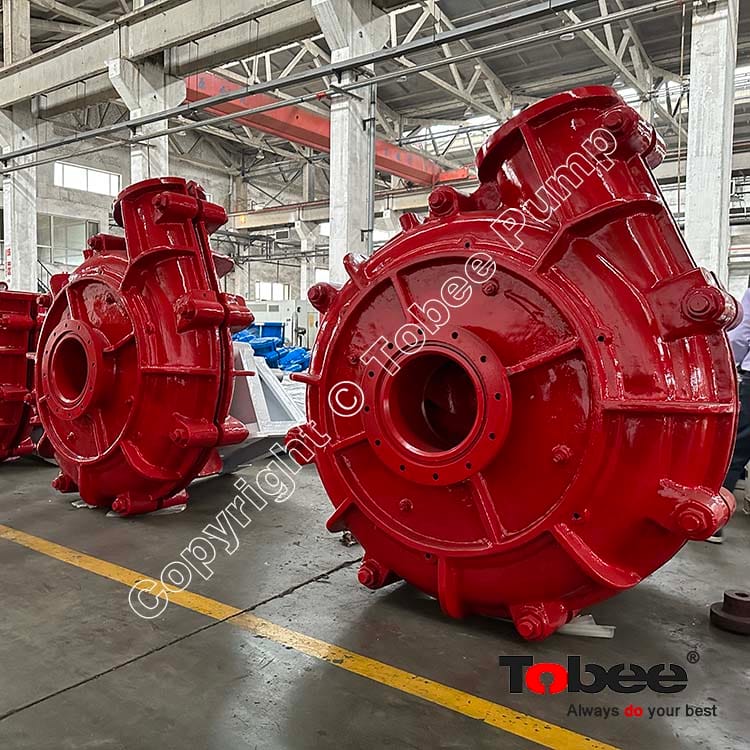

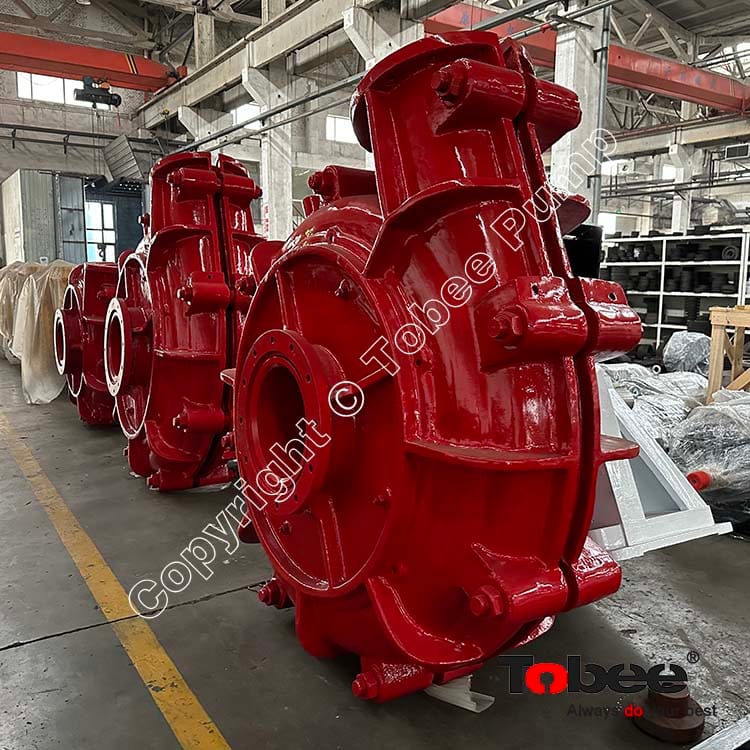

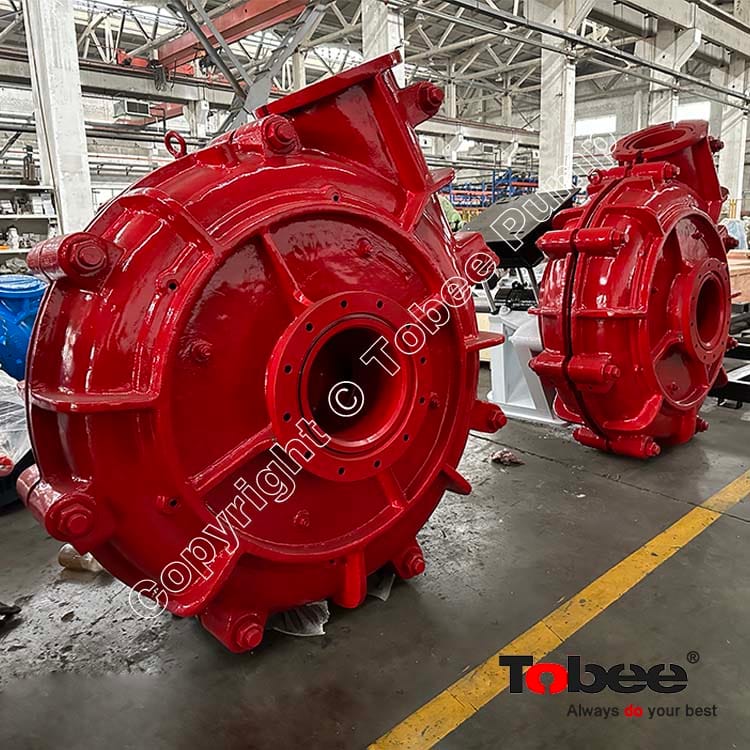

12x10ST-AH Slurry Pump is robust state of the art slurry pumps that feature oil or grease lubrication bearing assemblies and complete interchangeable with other major brands. The 12x10 centrifugal slurry pump can be supplied in high chrome alloy materials specifically designed for heavy duty slurry applications.
Design Features:
√ 12x10ST-AH slurry pump wet parts are made of wear-resistant high chromium alloy.
√ 12x10ST-AH pump bearing assembly use cylindrical structure, adjusting the space between impeller and front liner easily, Can be removed completely when being repaired. Bearing assembly use grease lubrication.
√ The shaft seal could use the packing seal, expeller seal and mechanical seal for all slurry pump.
√ The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications at its working site.
√ There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.
√ Wide performance, good NPSH and high efficiency. The slurry pump can be installed in multistage series to meet the delivery for long distance.
Tobee® 12/10ST-AH Series Slurry Pumps Performance Parameters:
|
Model |
Max. Power (kw) |
Materials |
Clear Water Performance |
Impeller Vane No. |
|||||
|
Liner |
Impeller |
Capacity Q (m3/h) |
Head H (m) |
Speed n (rpm) |
Eff. η (%) |
NPSH (m) |
|||
|
560 |
M |
M |
936~1980 |
7~68 |
300~800 |
82 |
6 |
5 |
|
Slurry Pumps Seal Arrangement:
•Packing Seal is a general shaft seal for slurry pumps. It applys to various pumping conditions, PTFE and Graphite materials of Packing can be used in high corrosive slurries or high temperature conditions.Using ceramic shaft sleeve, For high abrasion conditions, The ceramic shaft sleeve is available.
•Expeller Seal is an impeller force of reversed centrifugal force, preventing slurry leakage. Slurry pump expeller seal can be used on the single-stage pump when the positive pressure of pump inlet is no more than 10% of pump outlet pressure or on the first-stage pump in the pump series.
•Mechanical Seal is advanced sealing technique without sealing leakage, The advantages are integrating construction, convenient installation & replacement, The design of mechanical seal and seal box is suitable for liquid flow condition, So it has high abrasion and vibration resistance, pump mechanical seal can be used in various severe conditions.
Slurry Pump Transmission Options:
Application:
AH Series slurry pumps can be used in various of applications, like Minerals processing, Pipeline transport, High velocity hydraulic transport, Coal prep, Cyclone feeds, Aggregate processing, Fine primary mill grinding, Chemical slurry service, Tailings, secondary grinding, Industrial processing, Pulp and paper, Food processing, Cracking operations, Ash handling etc.
Accroding to different working conditions, AH series slurry pumps can be use as minerals process pump, Booster sand pump, Gypsum slurry pump, Classifying Cyclone Feed Pump, Dewatering Screen Pump, Thickner Area Sump Pump, Tailings Pump, Metboom Pump, Feedprep Pump, Scavenger Feed Pump, DMC Feed Pump, Thickener U/F Pump, Re-Cleaner Pump, Ball mill discharge Pump, Ruffer Feed Pump, Fines Area Sump Pump, Transfer to feedprep Pump, Metboom Return Pump, Slime Pond Sump Pump, Thickner Underflow Pump, Thickner Tailings Pump, Thickner Underflow Pump, Magnetite Sump Slurry Pump, Rinse Pump, Dilute Pump, Re-Cleaner Pump, Rougher Feed Pump, Tailings booster Pump, Dilute Medium Slurry Pump, Mill slurry Pump, Mill feed water Pump, Disc filter basin flushing Pump, Correct Medium Slurry Pump, Mixing tank slurry Pump, Centrifuge Effl. Transfer Slurry Pump, Fines Refuse Effl. Transfer Pump, Gas cleaning slurry Pump, Windbox slurry Pump, Pellet hand scrubber slurry pump, Process recycle Pump, Scrubber slurry Pump, Prop pellets undersize Pump, Screen feeder Pump, Furn disch scrubber slurry Pump, BPF Filtrate Effl. Pump, Cosmetic recycle water Pump, Backwash Pump, Venturi scrubber slurry pump, Clarifier underflow pump, Pipeline transfer pump etc.
