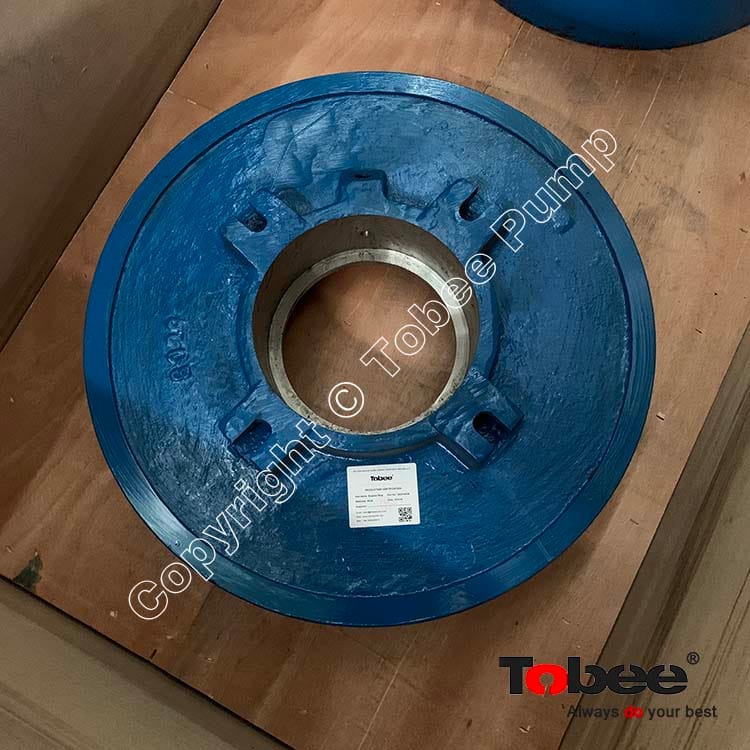

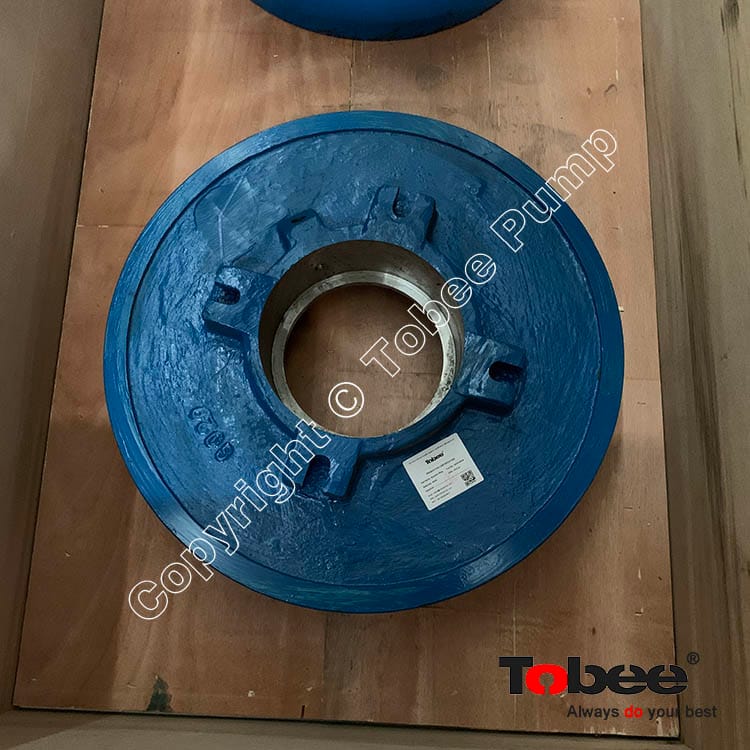

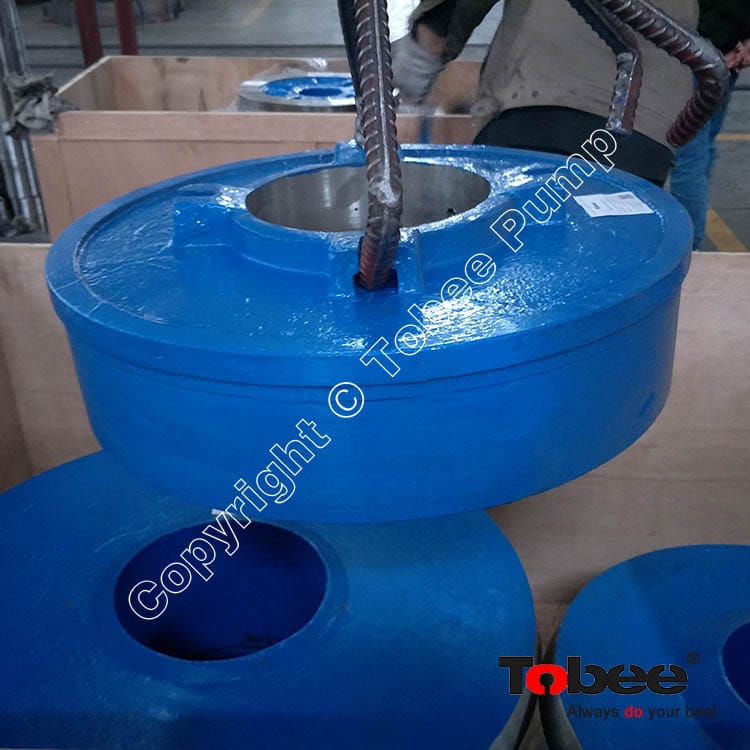

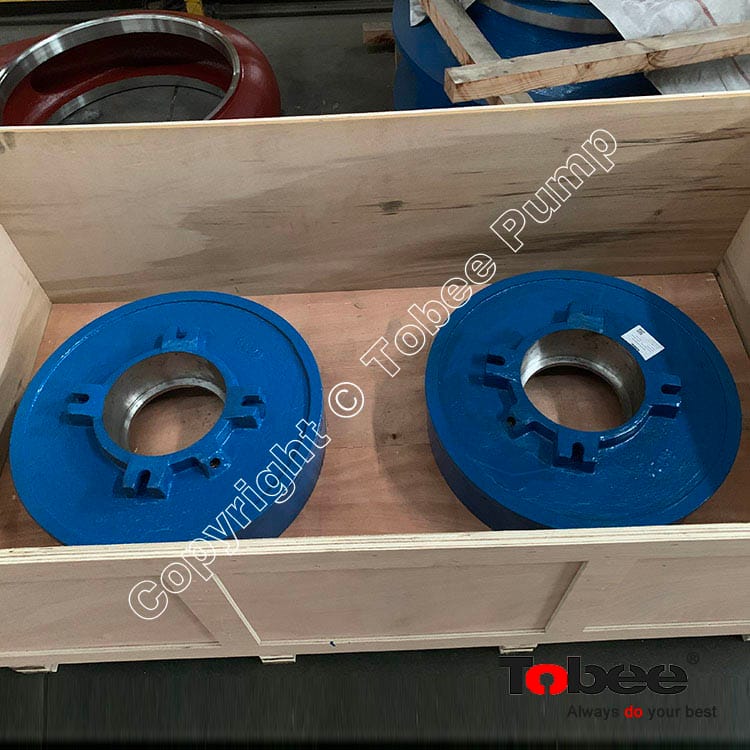

G029A05A Expeller Ring is used for 10/8 and 12/10 AH Slurry Pumps, the material is high chrome, A05A material is more wear resistant than cast iron.
Tobee® Slurry Pump Expeller Ring is interchangeable with AH/HH/L/M slurry pumps expeller ring, The expeller ring is together work with expeller for slurry pumps. They can not only help seal the pump, but also reduce the centrifugal force. The design and material of expeller is significant to its service life, Tobee offers expeller in cast iron and high chrome and rubber materials for options.
Slurry Pump Expeller Ring List:
|
Expeller Ring Code |
AH Slurry Pumps |
Slurry Pump Materials |
|
B029 |
1.5/1B-AH, 2/1.5B-AH |
HT250, High chrome, Rubber |
|
3/2C-AH |
HT250, High chrome, Rubber |
|
|
D029 |
4/3C-AH, 4/3D-AH |
HT250, High chrome, Rubber |
|
DAM029 |
6/4D-AH |
HT250, High chrome, Rubber |
|
E029 |
6/4E-AH |
HT250, High chrome, Rubber |
|
EAM029 |
8/6E-AH, 8/6R-AH |
HT250, High chrome, Rubber |
|
8/6F-AH |
HT250, High chrome, Rubber |
|
|
FAM029 |
10/8F-AH, 12/10F-AH, 14/12F-AH |
HT250, High chrome, Rubber |
|
10/8ST-AH, 12/10ST-AH, 14/12ST-AH |
HT250, High chrome, Rubber |
|
|
SH029 |
10/8ST-AH, 12/10ST-AH, 14/12ST-AH |
HT250, High chrome, Rubber |
|
TH029 |
16/14TU-AH |
HT250, High chrome, Rubber |
|
Expeller Ring Code |
HH Slurry Pumps |
Slurry Pump Materials |
|
CH029 |
1.5/1C-HH |
HT250, High chrome, Rubber |
|
DAM029 |
3/2D-HH |
HT250, High chrome, Rubber |
|
E0AM029 |
4/3E-HH |
HT250, High chrome, Rubber |
|
FH029 |
6/4F-HH |
HT250, High chrome, Rubber |
|
Expeller Ring Code |
M Slurry Pumps |
Slurry Pump Materials |
|
EAM029 |
10/8E-M |
HT250, High chrome, Rubber |
|
FAM029 |
10/8F-M |
HT250, High chrome, Rubber |
|
Expeller Ring Code |
L Slurry Pumps |
Slurry Pump Materials |
|
ASC029 |
20A-L |
HT250, High chrome, Rubber |
|
BSC029 |
50B-L |
HT250, High chrome, Rubber |
|
CSC029 |
75C-L |
HT250, High chrome, Rubber |
|
DSC029 |
100D-L |
HT250, High chrome, Rubber |
|
ESC6029 |
150E-L |
HT250, High chrome, Rubber |
|
SL30029 |
300S-L |
HT250, High chrome, Rubber |
|
Expeller Ring Code |
G(H) Gravel Pumps |
Gravel Pump Materials |
|
DAM029 |
6/4D-G |
HT250, High chrome, Rubber |
|
E029 |
8/6E-G |
HT250, High chrome, Rubber |
|
F029 |
10/8F-G |
HT250, High chrome, Rubber |
|
GG029 |
12/10G-G, 14/12G-G, 12/10G-GH |
HT250, High chrome, Rubber |
|
HG029 |
14/12TU-G,16/14TU-G,16/14TU-GH |
HT250, High chrome, Rubber |
Slurry Pump On-site Applications:
Tobee® Slurry Pump parts widely used for Mining, Mineral Processing, Sand and Gravel, Coal Prep, Chemical Slurry Service, Cyclone Feeds, Aggregate Processing, Wet crushers, SAG mill discharge, Fine Primary Mill Grinding, Tailings, Secondary Grinding, Bottom/fly ash slurries, Pulp And Paper, Food Processing, Cracking Operations, Gypsum slurries, Pipeline Transport, High Velocity Hydraulic Transport,Food Processing, Explosive Sludge In Metal Smelting, River And Pond Dredging, Heavy Refuse Removal, Larger Particle Or Low NPSHA Applications, Continuous (Snore) Sump Pump Operation, Abrasive Slurries, High Density Slurries, Large Particle Slurries, Sump Drainage, Wash down, Floor Drainage, Mixing, Iron Ore, Cooper, Diamond, Aluminum oxide, Gold, Kaolin, Phosphorite, Steel, Palm, Suger, Chemical, Power, FGD, Frac Sand Blending, Waste water, Flotation etc.
