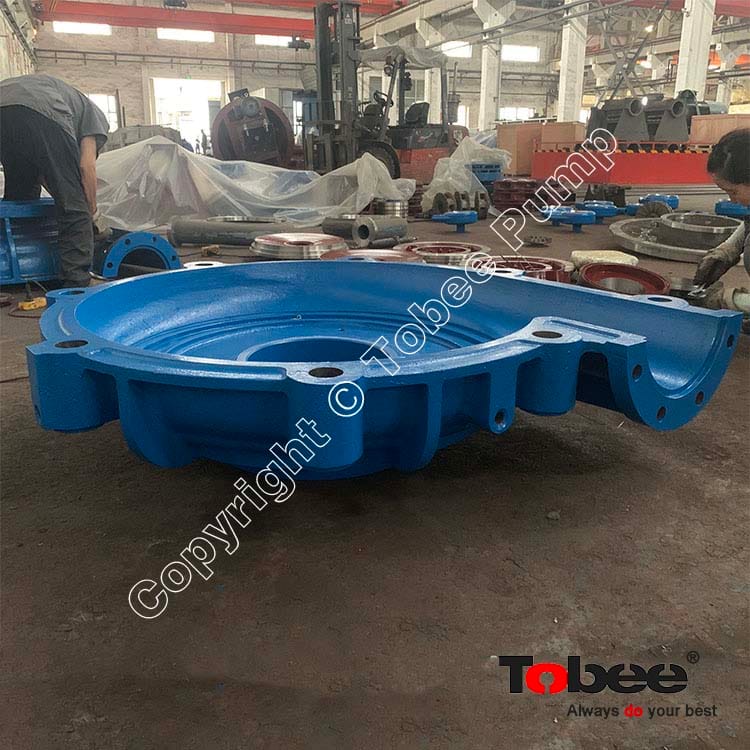

Tobee Pump Parts Casing Cover Plate G8013D21 can be installed on the 10x8 AH series Concentrator Process Slurry Pumps with frame plate to complete a casing.

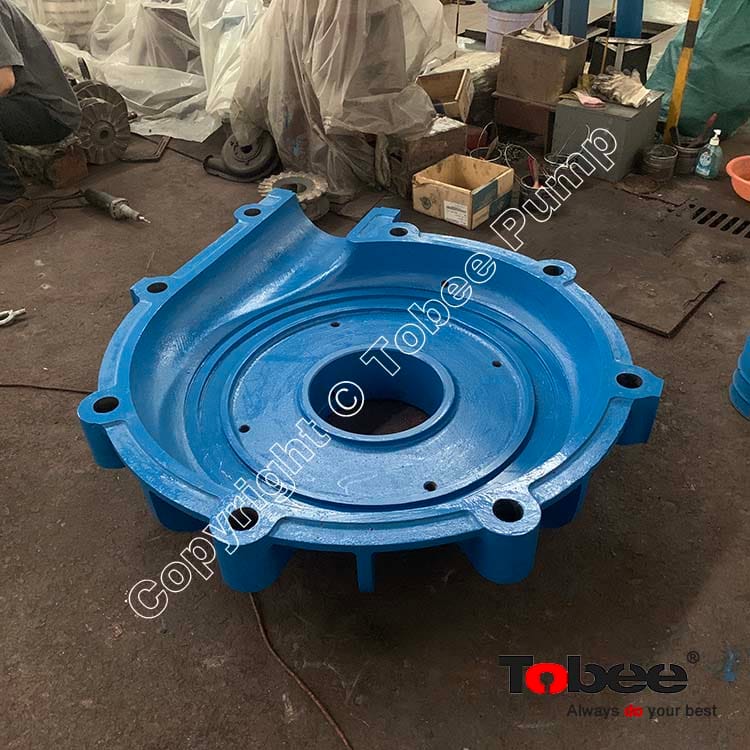

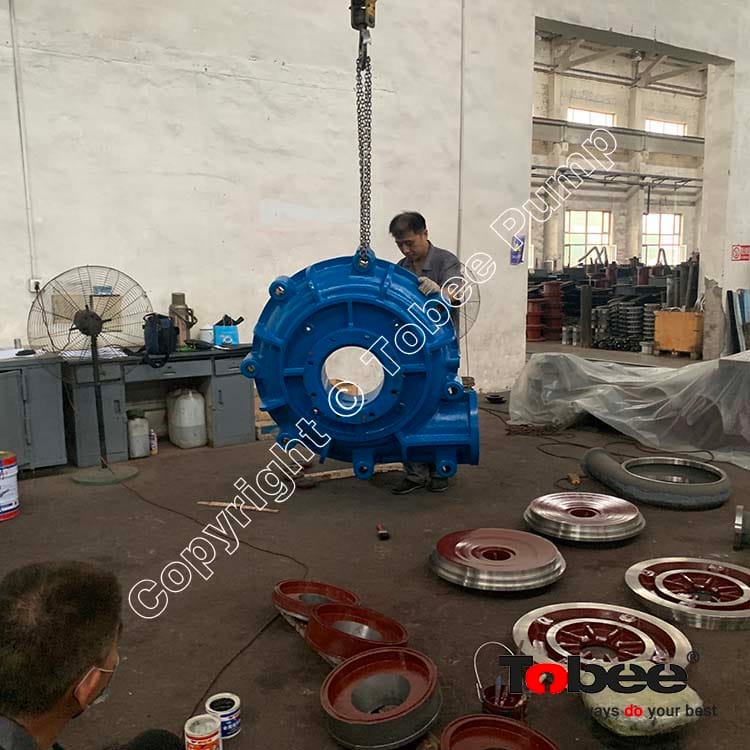

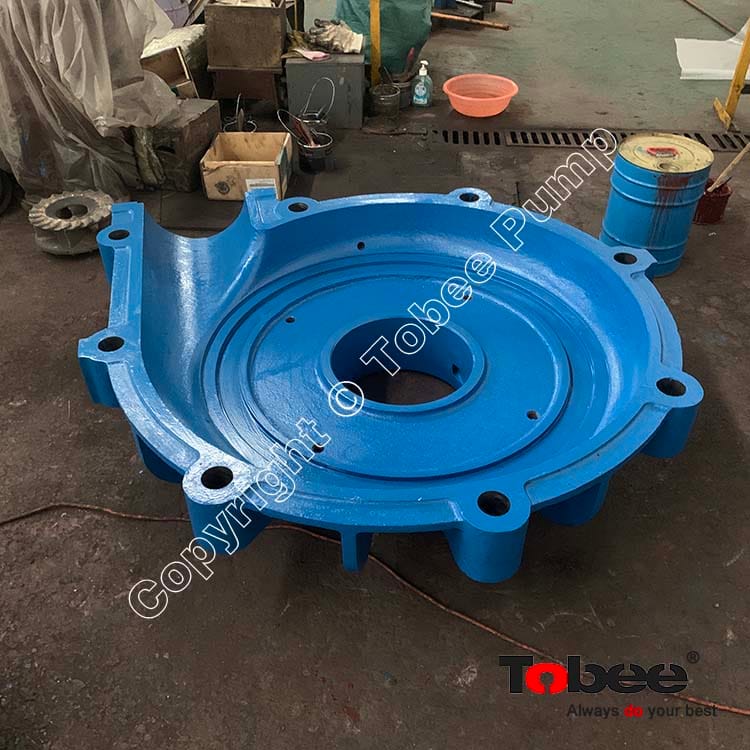

Slurry Pump Cover Plate is in suction end of split casing slurry pump. It's the outer shell of the radial subdivision, and combined with Frame plate together make up the complete pump body. Cover Plate is under pressure of pump cavity, and at the same time bear the force of pipeline. So Cover plate need to have more higher request for strength.

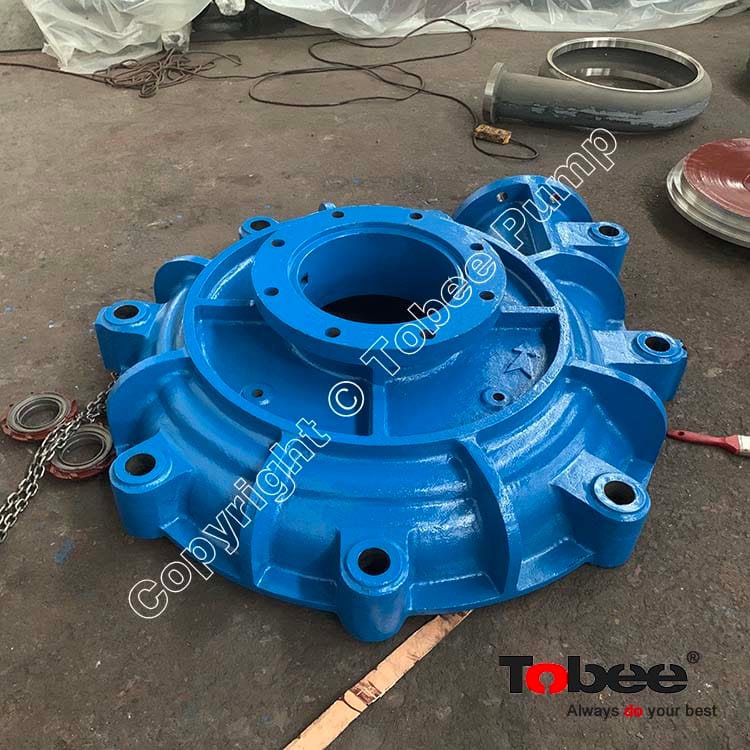

Tobee® Slurry Pump Casing halves of cast or ductile iron with external reinforcing ribs provide high operating pressure capabilities and an extra measure of safety. Generally, the material of slurry pump cover plate less than 6/4 size is made from Gary Iron, greater than 6/4 size is made from Ductile Iron for supporting higher pressure. For all the series-connected slurry pumps, Ductile iron cover plate is requested.
Tobee® 10/8G-AH Slurry Pump Parts List:
|
No. |
Pump Model |
Part Code |
Part Name |
Material |
Weight |
|
1 |
10/8G-AH |
G239M |
Impeller Release Collar |
C23 |
8.2 |
|
2 |
10/8G-AH |
G8124 |
Volute Liner Seal |
Rubber |
|
|
3 |
10/8G-AH |
Frame Plate |
D21 |
704.5 |
|
|
4 |
10/8G-AH |
Cover Plate |
D21 |
552 |
|
|
5 |
10/8G-AH |
Impeller |
A05 |
373 |
|
|
6 |
10/8G-AH |
Volute Liner |
A05 |
375.5 |
|
|
7 |
10/8G-AH |
Throath bush |
A05 |
188 |
|
|
8 |
10/8G-AH |
Frame Plate Liner Insert |
A05 |
164 |
|
|
9 |
10/8G-AH |
G076 |
Shaft Sleeve |
C21, C23 |
45.2 |
|
10 |
10/8G-AH |
Shaft Sleeve |
C21, C23 |
34 |
|
|
11 |
10/8G-AH |
Stuffing Box |
G01, A05 |
121.5 |
|
|
12 |
10/8G-AH |
G028 |
Expeller |
G01, A05 |
41.7 |
|
13 |
10/8G-AH |
G029 |
Expeller Ring |
G01, A05 |
109 |
|
14 |
10/8G-AH |
G003M |
Pump Base |
G01 |
908 |
|
15 |
10/8G-AH |
G063 |
Lantern Ring |
K31 |
4.97 |
|
16 |
10/8G-AH |
G118 |
Lantern Restrictor |
K24, K31 |
9.93 |
|
17 |
10/8G-AH |
G067 |
Neck Ring |
E62 |
3.6 |
|
18 |
10/8G-AH |
G303 |
Locating Nut |
E02 |
37.17 |
|
19 |
10/8G-AH |
G8302 |
Lifting Tube |
E02 |
70.7 |
|
20 |
10/8G-AH |
G8304 |
Volute Lifting Beam |
E02 |
41.16 |
|
21 |
10/8G-AH |
G044 |
Gland Assembly |
K24 |
12.5 |
|
22 |
10/8G-AH |
G8015M |
Cover Plate Bolt |
45 |
8.53 |
|
23 |
10/8G-AH |
CSC210 |
Shaft O-Ring |
Rubber |
|
|
24 |
10/8G-AH |
G122 |
Expeller Ring/Stuffing Box Seal |
Rubber |
|
|
25 |
10/8G-AH |
G8060 |
Intake Joint |
Rubber |
|
|
26 |
10/8G-AH |
G8132XLP |
Discharge Joint Ring |
Rubber |
|
|
27 |
10/8G-AH |
G025 |
End Cover Seal |
Rubber |
|
|
28 |
10/8G-AH |
G138 |
Grease Cup Adaptor |
E62 |
0.42 |
|
29 |
10/8G-AH |
G004M |
Bearing Body |
D70 |
151.5 |
|
30 |
10/8G-AH |
G024 |
End Cover |
E62 |
17.5 |
|
31 |
10/8G-AH |
G062 |
Labyrinth (Head) |
D70 |
9.6 |
|
32 |
10/8G-AH |
G062DM |
Labyrinth (Drive) |
D70 |
14.5 |
|
33 |
10/8G-AH |
G073M |
Shaft |
E05 |
242.6 |
|
34 |
10/8G-AH |
G005M |
Bearing Assembly |
|
|
