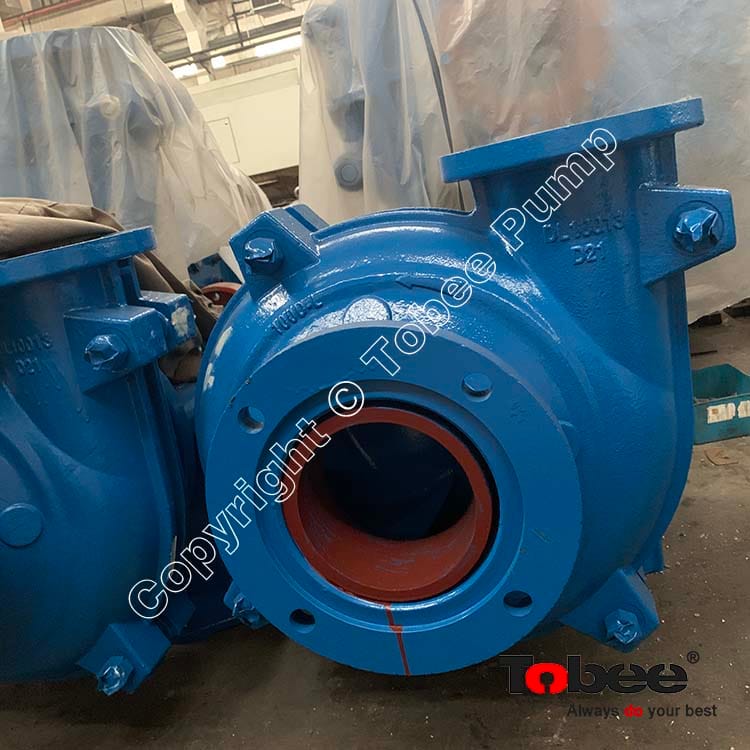

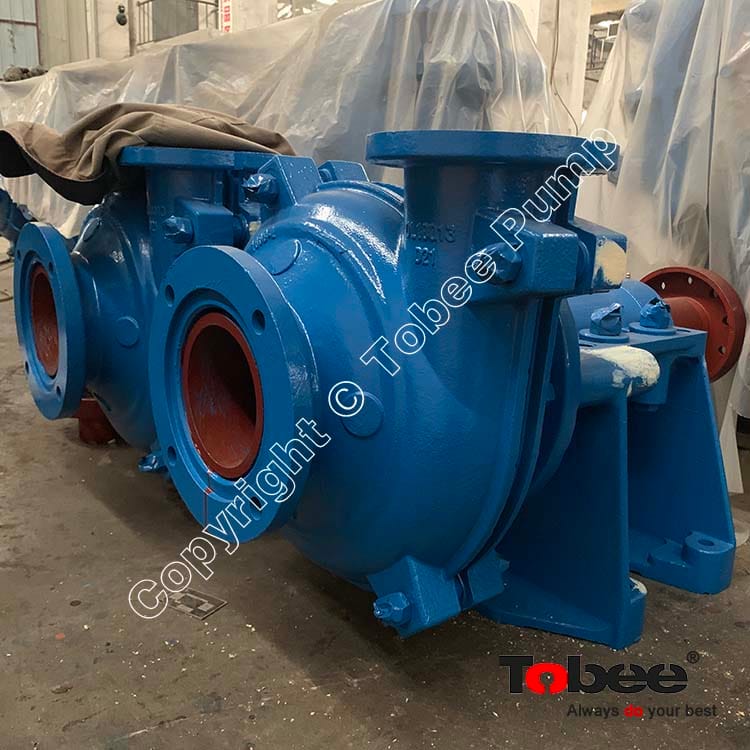

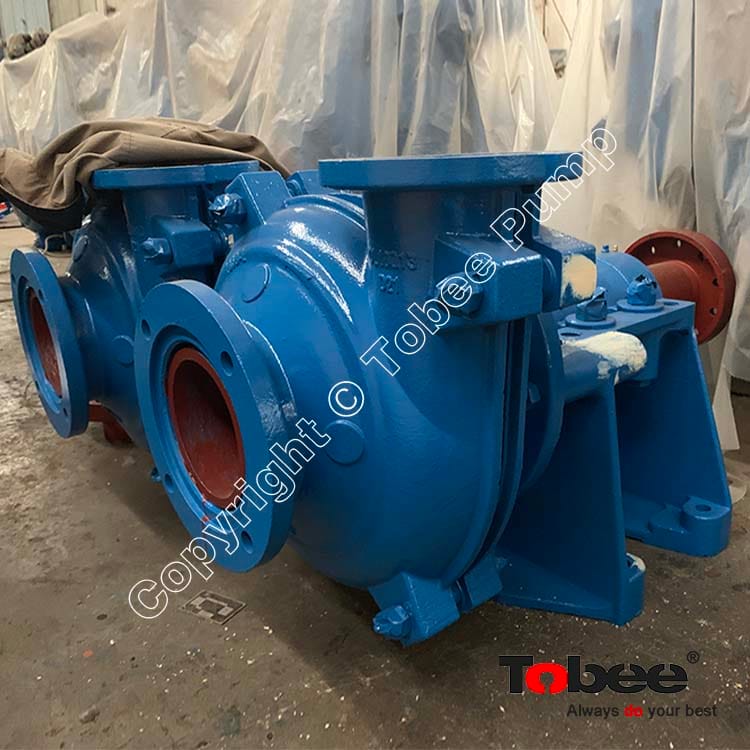

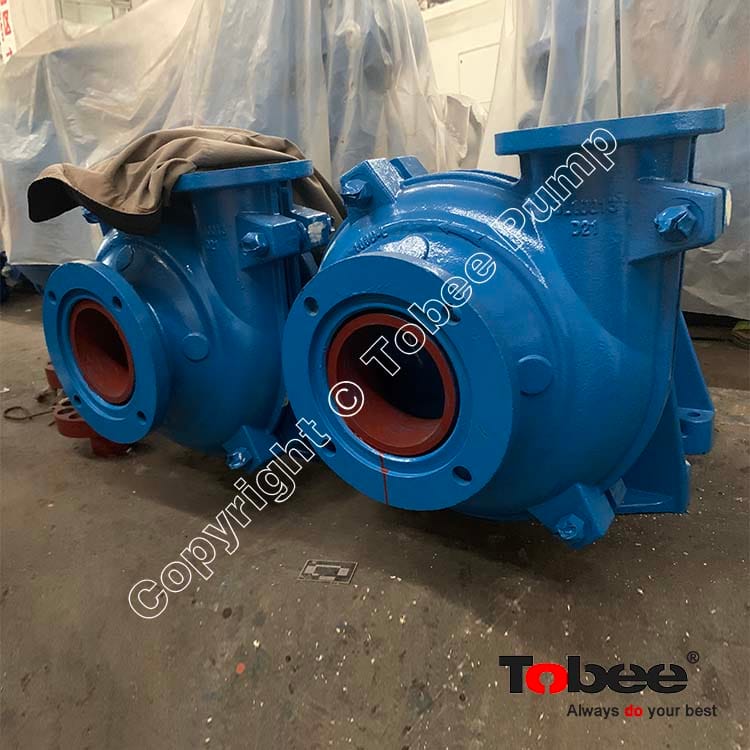

100D-L Light Slurry Pumps are higher efficient centrifugal slurry pumps, similar in design to the AH series slurry pumps. L series slurry pumps operate in high speed with small volumes to save floor area, the metal lined and rubber lined are interchangeable, Impeller adopts hyper chrome alloys or rubber etc. The L series pumps offer ruggedness and slurry handling capacity, but with a wider range of flow-rates and lower life-cycle costs.
√ Heavy duty construction with through-bolt design provides ease of maintenance and minimal downtime.
√ Ductile iron fully lined casing provides durability, strength, safety, and long service life.
√ Large diameter, slow turning, high efficiency impellers designed to achieve maximum wear life and low operating costs.
√ Large, open internal passages designed to reduce internal velocities, maximize wear life and lower operating costs.
√ Thick elastomer or alloy bolt-in liners provide superior corrosion resistance plus offer ease of liner change-out and interchangeability to reduce overall maintenance costs and maximize wear life.
√ Designed for rugged duties while offering excellent efficiencies.
√ Minimal shaft/impeller overhang reduces shaft deflection and increases packing life.
√ Cartridge-style bearing assembly allows for maintenance in a clean environment without removal of the pump, resulting in reliable operation and prolonged bearing life.
√ Grease or oil lubrication bearing assembly options offer ease of maintenance and reduced downtime.
√ Full flush gland, low flow, and dry running centrifugal seals reduce flush water usage minimizing pump operating costs.
√ Mechanical seals reduce flush water usage, minimizing pump operating costs.
Tobee® L Light Duty Slurry Pumps Performance Parameters:
| Moedl |
Allowable Max. Power (kw)
|
Clear Water Pweformance | ||||||
| Capacity Q |
Head H (m)
|
Speed n (r/min)
|
Eff. η (%)
|
NPSH (m)
|
Impeller Dia. (mm)
|
|||
| m3/h | I/s | |||||||
| 20A-L | 7.5 | 2.34-10.8 | 0.65-3 | 6-37 | 1400-3000 | 40 | 2.5-3 | 152.4 |
| 50B-L | 15 | 11.5-76 | 3.2-21.1 | 8.5-46 | 1400-2800 | 62 | 2.5-5.5 | 190 |
| 75C-L | 30 | 18-151 | 5-42 | 4-46.4 | 900-2400 | 57 | 3-6 | 229 |
| 100D-L | 60 | 46.8-324 | 13-90 | 7-48.3 | 800-1800 | 64 | 2-6 | 305 |
| 150E-L | 120 | 115-568.8 | 32-158 | 10.5-51.8 | 800-1500 | 60 | 2.5-6 | 381 |
| 200E-L | 120 | 234-910 | 65-235 | 9.5-40 | 600-1100 | 64 | 3-6 | 457 |
| 250E-L | 120 | 396-1425 | 110-396 | 8-30 | 500-800 | 77 | 2-10 | 550 |
| 300S-L | 560 | 468-2538 | 130-708 | 8-60 | 400-950 | 79 | 2-10 | 653 |
| 350S-L | 560 | 650-2800 | 180-780 | 10-59 | 400-840 | 81 | 3-10 | 736 |
| 400ST-L | 560 | 756-3312 | 210-920 | 7-37.5 | 300-600 | 85 | 2-8 | 825 |
| 450ST-L | 560 | 1080-7920 | 300-1210 | 9-40 | 300-550 | 87 | 3-10 | 933 |
| 550TU-L | 1200 | 1980-7920 | 560-2200 | 10-50 | 250-475 | 86 | 4-10 | 1213 |
| 650TU-L | 1200 | 2520-9180 | 700-2530 | 10-55 | 200-350 | 86 | 2-8 | 1425 |
| 50B-LR | 15 | 9-61 | 2.5-17 | 3-32.4 | 1200-2600 | 48 | 2.75-4.5 | 190 |
| 75C-LR | 30 | 28.8-154.8 | 8-43 | 9-43 | 1100-2300 | 60 | 3-5 | 229 |
| 100D-LR | 60 | 54-288 | 15-80 | 12-38 | 800-1600 | 65 | 2.5-5.5 | 305 |
| 150E-LR | 120 | 72-576 | 20-160 | 4-38 | 800-1300 | 65 | 2.5-5.5 | 381 |
| 250E-LR | 120 | 396-1425 | 110-396 | 8-30 | 500-800 | 77 | 2-10 | 550 |
| 300S-LR | 560 | 432-1900 | 120-528 | 7-41 | 400-800 | 81 | 3-8 | 653 |
| 350S-LR | 560 | 720-2844 | 200-790 | 10-41 | 400-700 | 86 | 3-7 | 736 |
| 400ST-LR | 560 | 720-3312 | 200-920 | 7-51 | 300-700 | 80 | 2-10 | 825 |
| 450ST-LR | 560 | 1008-4356 | 280-1210 | 9-48 | 300-600 | 80 | 2-9 | 933 |
| 550TU-LR | 1200 | 1980-7920 | 560-2200 | 10-50 | 250-475 | 86 | 4-10 | 1213 |
| 650TU-LR | 1200 | 2520-9180 | 700-2530 | 10-39 | 200-350 | 86 | 2-8 | 1425 |
Tobee® 100D-L Light Duty Slurry Pump Applications:
L series Light Duty Slurry Pumps are designed for handling light abrasive, lower density slurries with excellent wear life while maintaining efficiency during the wear cycle providing the best total operating cost. The L series slurry pumps can be used in many applications, such as Pipeline transport, High velocity hydraulic transport, Mineral processing, Coal prep, Ball mill discharge, Ni acid slurry, Coarse sand, Lime grinding, Phosphoric acid, Cyclone feeds, Aggregate processing, Fine primary mill grinding, Chemical slurry service, Tailings, secondary grinding, Industrial processing, Wastewater, FGD, Ash handling etc.
