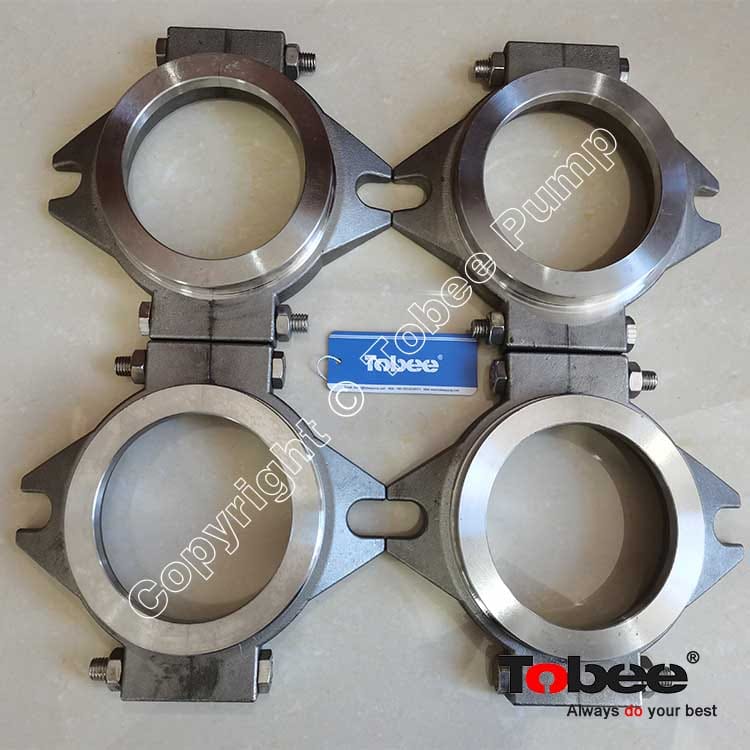

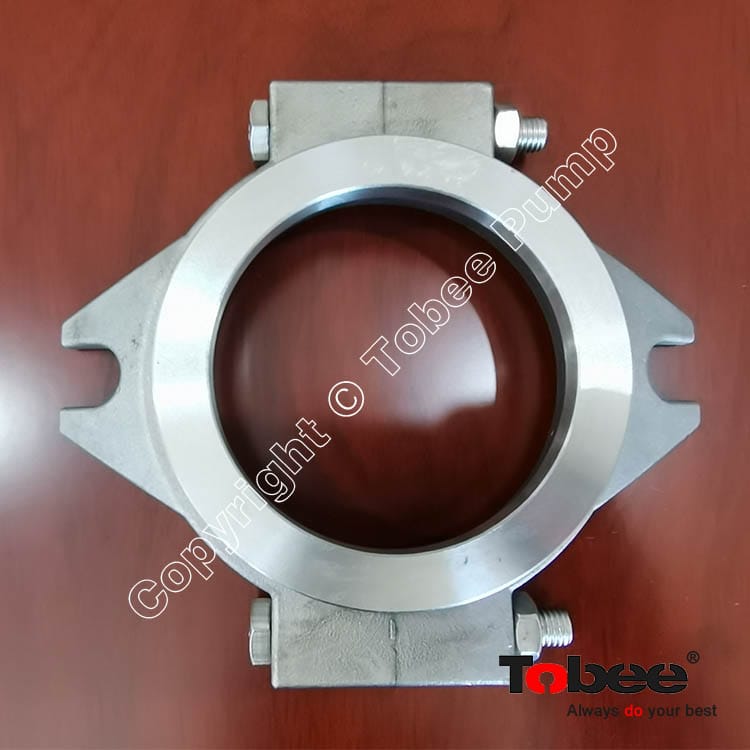

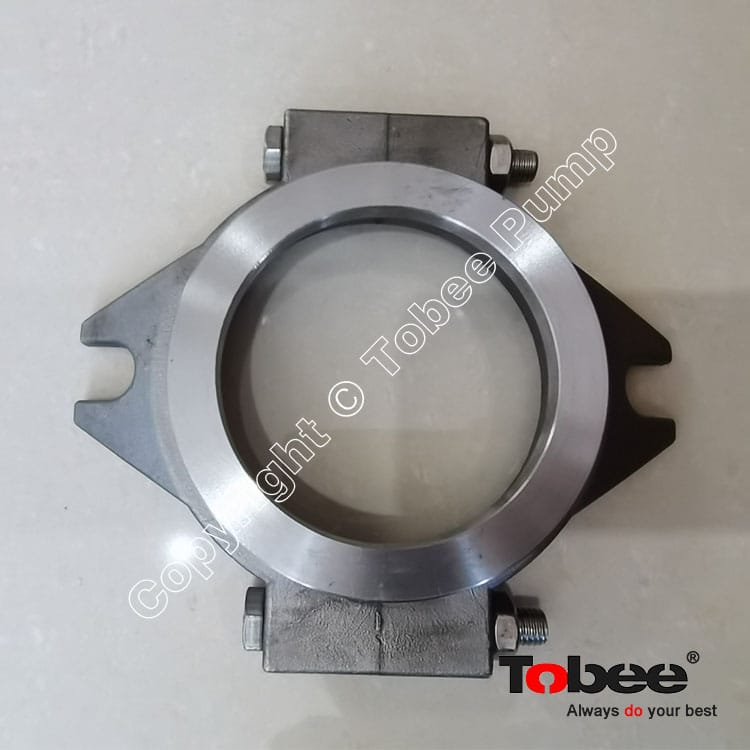

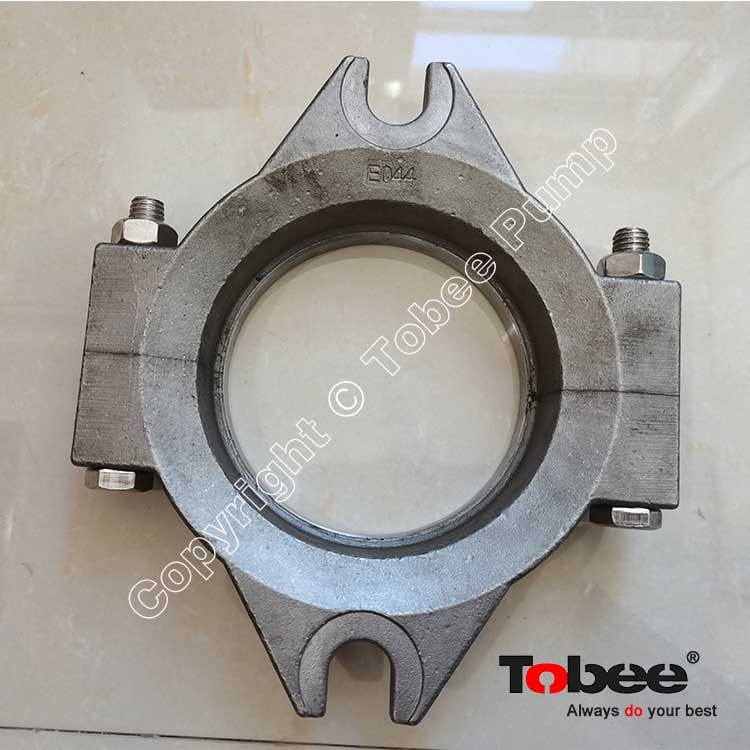

10/8E-M Slurry Pump Parts Gland Assembly E044C23

Tobee® Slurry Pump Parts Gland Assembly E044C23 is used for 10/8E-M Slurry Pumps for preventing leak, the gland assembly is mainly used to compress the packing to ensure the tightness between the packing and the shaft sleeve.

The stuffing box seal is composed of packing box body, packing, gland, bolt and other basic parts. The packing placed between the box body and the rotating shaft is radially extended under the axial force of the bolt force and the gland, so that the packing is tight. Adhered to the periphery of the rotating shaft, the lubricating oil added from the oil cup will form a very thin oil film between the packing and the contact surface of the rotating shaft when the shaft rotates, which not only has lubricating effect, but also prevents the medium in the kettle from escaping and Infiltration of gas outside the kettle.

The gland is also available with a pair of open gland assembly used for slurry pumps. The slurry pump gland assembly is prone to damage due to stress during packing replacement and adjustment. Previously, usually with wire binding or replacement of gland assembly of slurry pump, often cause the media to continue to leak, both a waste of material, and unsafe. The packing gland has the characteristics of simple structure, easy to use, safe and reliable, and strong emergency. When the gland assembly is damaged, it can be easily and quickly replaced without affecting the normal use of the centrifugal slurry pumps.

Tobee® Slurry Pump Gland Assembly Codes:
