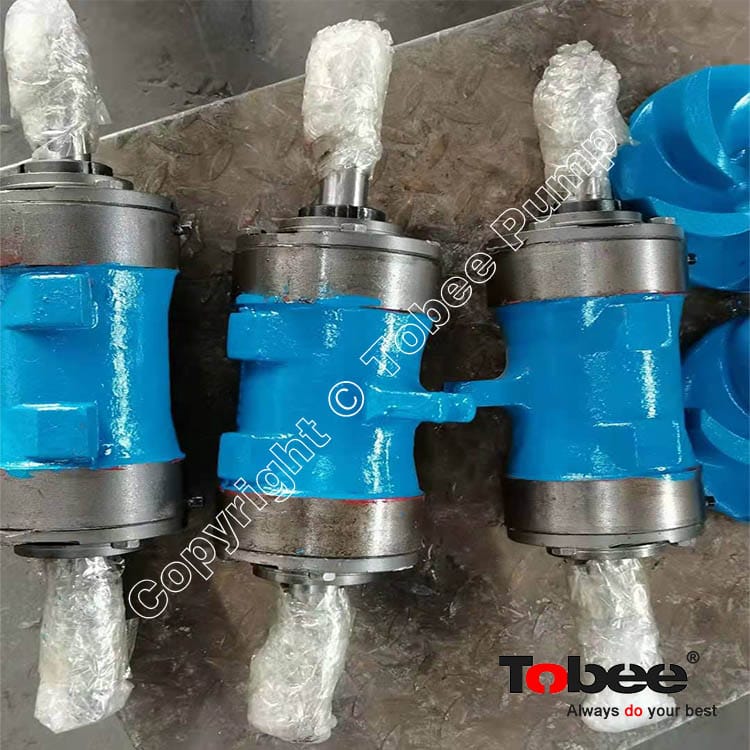

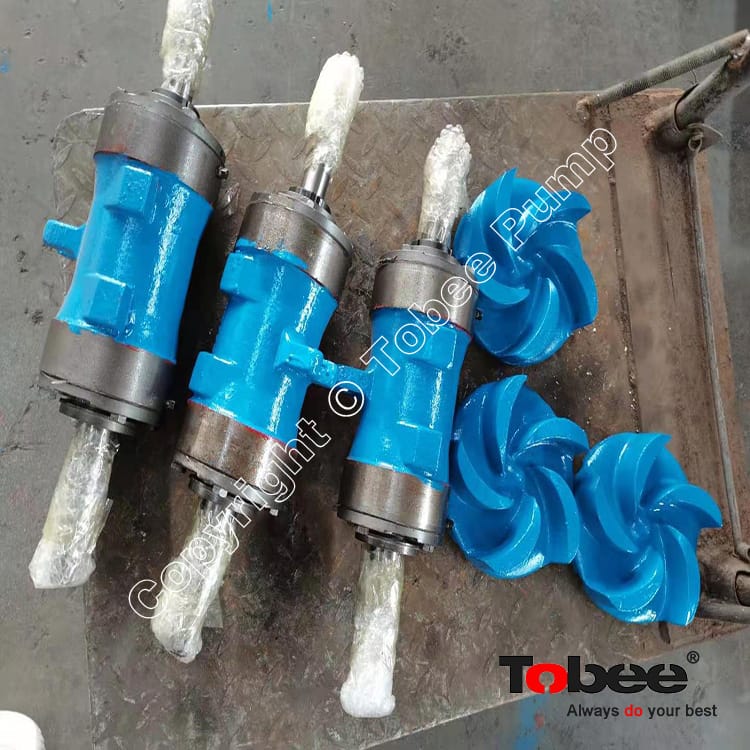

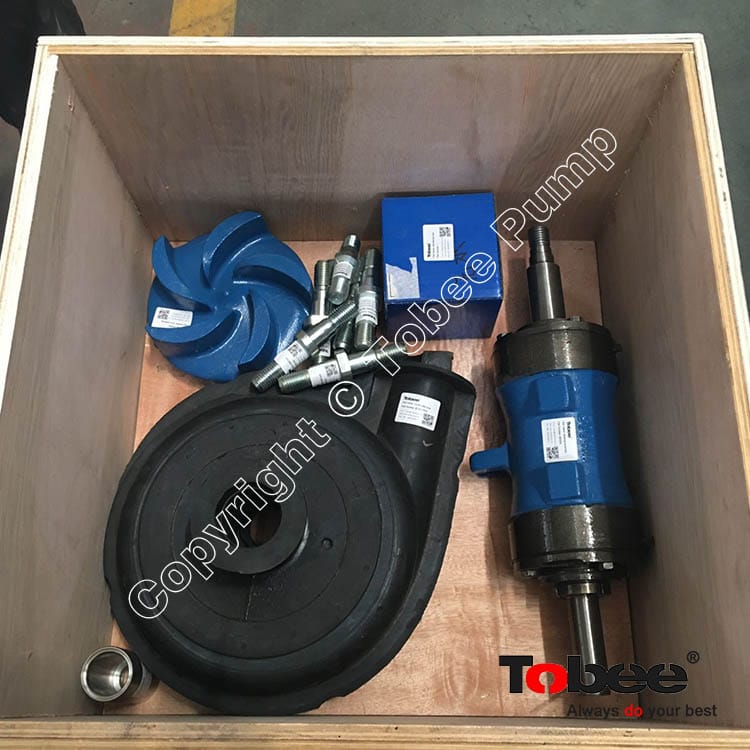

Bearing assembly B005M can be used for 1.5/1B-AH, 1.5/B-AHR, 2/1.5B-AH, 2/1.5B-AHR Slurry pumps.
Tobee® Slurry Pump Bearing assembly also called rotor assembly, It is a large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame. It is most important part for drive power unit. The bearing assembly is to connect the pump and motor as a complete pump working system. Its stability will directly affect pump operation and work life.
B005M Bearing Assembly – 1.5/1B-AH, 2/1.5B-AH Slurry Pump
C005M Bearing Assembly – 3/2C-AH Slurry pump
CAM005MBearing Assembly- 4/3C-AH Slurry Pump
D005M Bearing Assembly – 4/3D-AH, 6/4D-AH Slurry Pump
E005M Bearing Assembly – 6/4E-AH
EAM005M Bearing Assembly- 8/6E-AH Slurry Pump
R005M Bearing Assembly – 8/6R-AH Slurry Pump
FAM005M Bearing Assembly – 8/6F-AH, 10/8F-AH, 12/10F-AH Slurry Pump
SH005M Bearing Assembly – 10/8ST-AH, 12/10ST-AH, 14/12ST-AH Slurry Pump
TH005M Bearing Assembly – 16/14TU-AH, 18/16TU-AH, 20/18TU Slurry Pump
CAM005M Bearing Assembly – 1.5/1C-HH Slurry Pump
DAM005M Bearing Assembly – 3/2D-HH Slurry Pump
EAM005M Bearing Assembly – 4/3E-HH Slurry Pump
FAM005M Bearing Assembly – 6/4F-HH Slurry Pump
EAM005M Bearing Assembly – 10/8E-M Slurry Pump
R005M Bearing Assembly – 10/8R-M Slurry Pump
Interchangeable Slurry Pump Bearing Assembly Code:
|
Bearing Assembly |
Tobee TH Slurry Pump |
AH Slurry Pump |
|
B005M |
TH1.5/1B, TH2/1.5B |
1.5/1B-AH, 2/1.5B-AH |
|
C005M |
TH3/2C, TH4/3C |
3/2C-AH, 4/3C-AH |
|
D005M |
TH4/3D, TH6/4D |
4/3D-AH, 6/4D-AH |
|
E005M |
TH6/4E, TH8/6E |
6/4E-AH, 8/6E-AH |
|
R005M |
TH8/6R |
8/6R-AH |
|
FAM005M |
TH8/6F, TH10/8F, TH12/10F |
8/6F-AH, 10/8F-AH, 12/10F-AH |
|
SH005M |
TH10/8ST, TH12/10ST, TH14/12ST |
10/8ST-AH, 12/10ST-AH, 14/12ST-AH |
|
TH005M |
TH16/14TU, TH18/16TU, TH20/18TU |
16/14TU-AH, 18/16TU-AH, 20/18TU |
|
Bearing Assembly |
Tobee THH Slurry Pump |
HH Slurry Pump |
|
CAM005M |
THH1.5/1C |
1.5/1C-HH |
|
DAM005M |
THH3/2D |
3/2D-HH |
|
EAM005M |
THH4/3E |
4/3E-HH |
|
FAM005M |
THH6/4F |
6/4F-HH |
|
Bearing Assembly |
Tobee TM Slurry Pump |
M Slurry Pump |
|
EAM005M |
TM10/8E |
10/8E-M |
|
R005M |
TM10/8R |
10/8R-M |
|
Bearing Assembly |
Tobee TL Slurry Pump |
L Slurry Pump |
|
ASC005M |
TL20A |
20A-L |
|
BSC005M |
TL50B |
50B-L |
|
CAM005M |
TL75C |
75C-L |
|
DSC005M |
TL100D |
100D-L |
|
ESC005M |
T150E |
150E-L |
|
S005M |
300S-L |
300S-L |
|
Bearing Assembly |
Tobee TG(H) Gravel Pump |
G(H) Gravel Pump |
|
DAM005M |
TG6/4D |
6/4D-G |
|
EAM005M |
TG8/6E |
8/6E-G |
|
F005M |
TG10/8F |
10/8F-G |
|
S005-3M |
TG10/8S, TGH10/8S |
10/8S-G, 10/8S-GH |
|
G003M |
TG12/10G, TG14/12G, TGH12/10G |
12/10G-G, 14/12G-G, 12/10G-GH |
|
TH005M |
TGH16/14TU |
16/14TU-GH |
