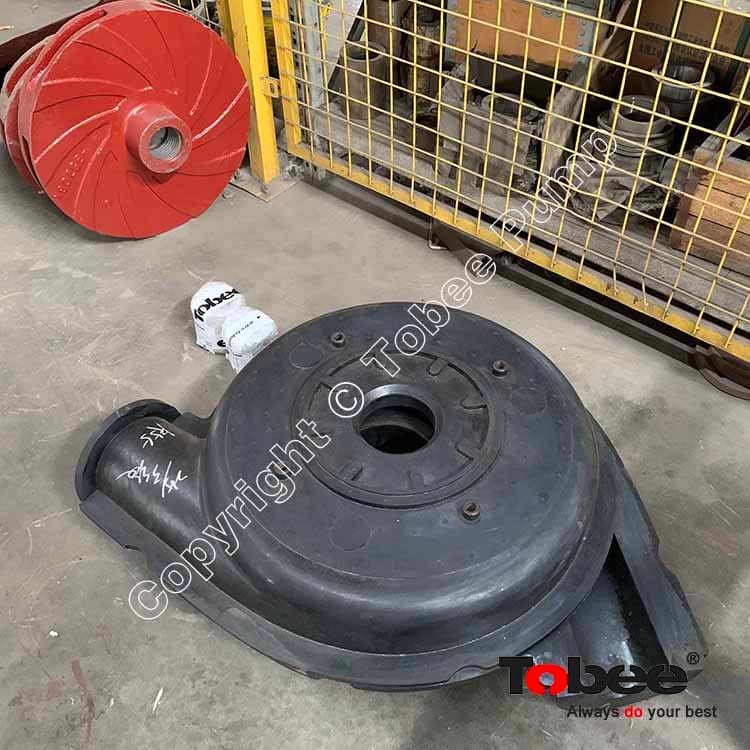

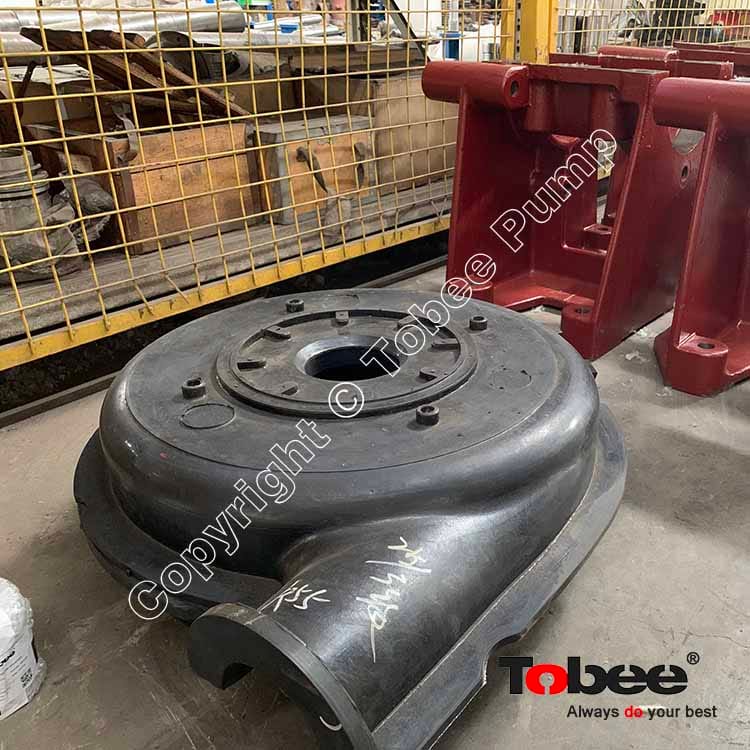

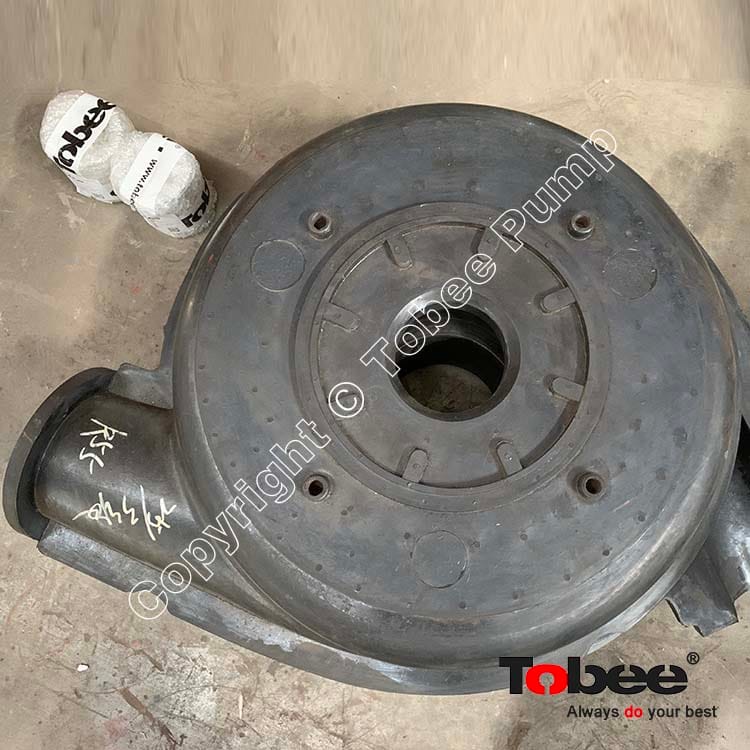

Slurry Pump Rubber Frame Plate Liner E4036R55

Tobee® Slurry Pump Rubber Wear Part Frame Plate Liner E4036R55 is suit for 6/4D-AH Slurry Pump, It also can be installed on 6/4E-AH Slurry Pump. It is very easily worn-out components because it works under longtime impact of abrasive and corrosive slurries in the high speed conditions. Slurry Pump Rubber Frame plate liner is the main wear parts for the rubber lined slurry pump. It forms a pump chamber with cover plate liner and throat bush to contact with slurries, As one of main wetted parts,

Rubber Lined Slurry pump is often used for the transportation of high concentration and corrosive fluids. Due to the strong corrosion and friction of the transported fluids, the wear resistance and corrosion resistance of the slurry pump frame plate liner are required to be higher. so as one of the important wet parts of slurry pump, the R55 rubber frame plate liner has good wear resistance, tear resistance, impact resistance, high elasticity and chemical stability.The usual working conditions are: temperature below 60℃, solid material content is not higher than 75%, solid particles: 80-200 mesh.

 Tobee® Slurry Pump Rubber Wear Parts:

√ Liners - Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomer. Elastomer seal rings back all liner joints.

√ Impeller - front and rear shrouds have pump out vanes that reduce recalculation and seal contamination. Hard metal and molded elastomer impellers are complete interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.

√ Throat-bush - Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.

Slurry Pump Frame Plate Liner Parts Codes:
